Quaife are proud to announce the arrival of a brand new sequential gearkit fitment for the new Honda Civic Type R FK2/FK8

As soon as the new Civic Type R FK2 was released Quaife were keen to get hold of one for development of a sequential gearkit, given the success and popularity of the QKE8J sequential gearkit for the EP3 and FN2 Civic variants.

Designed and manufactured in-house at Quaife's Sevenoaks, Kent facility, the QKE10J 6-speed sequential gearkit retains the original bellhousing side of the FK2/FK8 gearbox, with a Quaife manufactured alloy transmission casing, which retains the original mounting points and driveshafts, and incorporates Quaife's state-of-the-art sequential gear change mechanism that means it is impossible to mis-shift with ultra-fast shifting.

The design includes additional bearing supports between the 4th and 5th gear to strengthen the shaft making a more efficient and robust gearbox better suited to racing and rally use. Alongside the standard straight gear cut, a helical option is available for road and track day use.

Key features of the QKE10J gearkit are:

• Strengthened outer casing with stock mounting positions
• Open face dog engagement gears
• Retains stock clutch and drive shafts
• Ultra-fast Quaife sequential gearshift
• Includes new transmission housing with the choice of cable or paddle shift set up

Optionals:

• Upgrade your gearkit with REM superfinishing to give a much smoother surface finish to the gears.

  This high polish surface finish produces a smooth surface that not only allows for more even lubrication of the entire gear, but also reduces friction between meshing parts, thereby reducing heat and wear on the part, and increasing the longevity of your gearkit or gearbox.

  This is an essential upgrade for anyone looking to improve the performance of their gearbox or differential and get the most from the transmission.

• Optional LED digital gear position indicator available.

• Optional Quaife ATB differential available, allowing to show the full potential power of the Honda Civic Click Here

Gear Ratios

  1st        2nd      3rd        4th       5th       6th
2.769   1.944   1.476   1.227   1.042   0.920 - Spur

3.364   2.500   1.944   1.579   1.333   1.227 - Spur

3.500   2.048  1.462    1.133   0.939   0.853 - Helical

Final Drive Ratios

4.143 - Spur

4.000 - Helical

The Dream Automotive Replacement CAT pipe for the Civic FK8 is made from lightweight T304 stainless steel for a longer life and to give the owner a higher flow rate with reduced back pressure to release the engine full capabilities.

The de-cat pipe incorporates a tangential bend turbo outlet ensuring a perfect transition through its 3.5" bend tapered down to 3" exhaust outlet.

Hand made to the highest standard and TIG welded here in the UK, using water cut machined flanges we can promise an OEM fitment.

Heat management

We can offer two types of heat management,

Zircotec ceramic coating offering 30% heat reduction, It is in effect “welded” to the substrate using our proprietary metal bond system; eliminating the need for exhaust wrap; protecting components against corrosion; and continuing to perform and look good. zircotec coating can withstand temps of up to 900°C

and

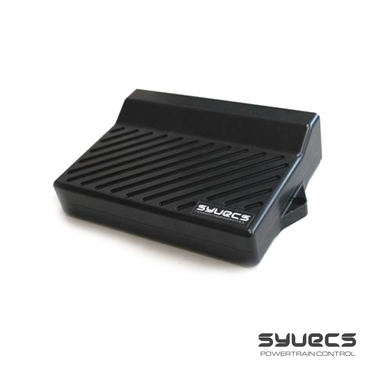

We believe this is a world first for a standalone ECU for both the OEM road car and one that retains the use of the electronic wastegate.

The S6-I ECU offers an extremely high level of precise engine management control. The triple processor unit uses a high speed RISC processor for code execution and an additional large FPGA for high speed engine position tracking, allowing the scheduling of code to be independent of signal patterns, increasing flexibility, efficiency and accuracy under transient conditions. This powerful combination also allows advanced control algorithms but yet easy to map for the end user still using our SCal software and S6 Firmware.

The Third Processor present is available for in the future users to write their own code in C for Full Vehicle Integration via Canbus and Build some custom strategies to handle some of the unique requirements which are now found in OEM Applications. Currently only Syvecs staff can do this but we are working on offering this out to all our dealers very soon!
Cased In A Sealed Aluminium Billet Unit With 3 x Waterproof Connectors Offering 94pins

Inputs

16 x General Purpose Analogue Inputs:
4 x 5V/Bipolar, Sensor/Sync/Speed, Programmable Trigger Voltages
4 x 5V/Thermistor, Sensor/Sync/Speed, Fixed Trigger Voltages
4 x 5V Sensor Input
4 x Thermistor Sensor Input

1 x NTK Lambda Input

1 x K-Type Thermocouple Circuit
1 x Knock Input

Outputs

18 x High/Low Side Driver Outputs:

2 x Half Bridge Outputs (Max 10 Amps)
16 x Low Side Injection/PWM Outputs (Max 10 Amps)
6 x TTL Ignition Driver

Comms

1 x Can 2.0B

1 x Rs232 Output

1 x Kline Output

100 Mhz Full Duplex Ethernet For Connection To PC For Programming And Data Download

1MB Battery Backed Internal Logging Memory, Onboard Laptop Logging and USB Logging to be supported in the near Future for near unlimited logging of certain parameters

Dimensions : 185 X 145 X 55 mm

Lead time: 1 week

DESCRIPTION

Teaming up with 7mod seeing us able to offer you a plug and play hybrid turbo capable of up to 460-500hp.

Based on the standard unit, the core turbo start off being fully shot blasted

The next process in re-engineering will be to polish the inlet and fit with a 50mm compressor wheel, The turbine side will be upgraded to a 9 blade 46.8mm turbine wheel.

The turbo with benefit from upgraded bearings and capable of running 2.5 bar boost.

COMPATIBLE VEHICLES

• Honda Civic Type R | FK2 2.0T K20C1 | 2015-2016
• Honda Civic Type R | FK8 2.0T K20C1 | 2017+

FITTING DETAILS

Dream Automotive offers in-house fitting on all products at our workshop in Bushey, Hertfordshire. Here are the important things you need to know:

• Fitting Cost - £
• Fitting Time - Hours
• Required Additional Items/Services - No additional items or services needed.
• Dream Automotive Recommends - No additional recommendations.

AVAILABILITY

Contact sales@dream-automotive.com for further information

DESCRIPTION

The Eventuri carbon fibre charge pipe. Made from 100% prepreg carbon fibre of the highest quality and workmanship.

• Machined flange for the turbo.
• Better thermal insulation against heat compared to OEM aluminium tube.
• Smoothed internals of the pipe to increase the flow of air into the turbo.
• Larger internal diameter turbo over standard allowing an increased amount of airflow into the inlet.

COMPATIBLE VEHICLES

• Honda Civic Type R | FK8 2.0T K20C1 | 2017+

FITTING DETAILS

Dream Automotive offers in-house fitting on all products at our workshop in Luton, Bedfordshire. Here are the important things you need to know:

• Fitting Time -
• Required Additional Items/Services - No additional items or services needed.
• Dream Automotive Recommends - No additional recommendations.

AVAILABILITY

Stock coming through slowly

Please note that we're unable to supply Eventuri Honda products to the following locations:

Belgium | Brunei | Indonesia | Luxembourg | Malaysia | Singapore | Thailand | The Netherlands | Vietnam

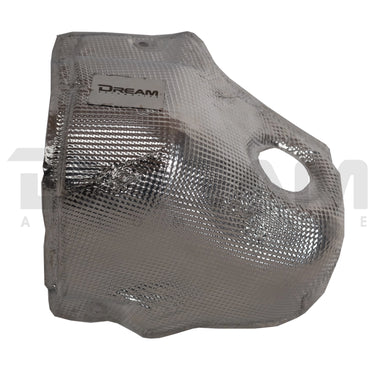

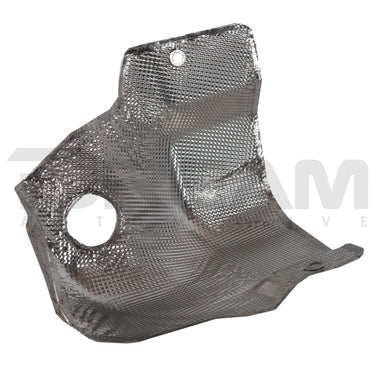

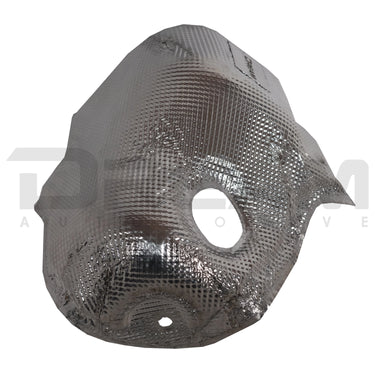

Designed to protect the oil drain pipe from excessive heat when using a decat sports cat or larger turbo on the K20C1 engine found inthe Fk2 and FK8 type R.

The heat sheild covers the complete length of the pipe including protection of the standard clamps, the sheild is then secured by two strong pinch tabs that are bent over once in place.

Lead time: in stock

For Honda Civic Type-R K20C1 - Turbo

Kit includes the following:

Standard Size

HONDA CIVIC TYPE-R (2017 - 2018) INTAKE, STOCK SIZE
2.0L - DOHC V-TEC 16 Valve (K20C1-TURBO)
Intake
Head Diameter: 35 mm
Stem Diameter: 5.48 mm
Overall Length: 117.25 mm
Tip Length: 2.1 mm
Reference: 20 Degree Super Flo.Stock size. Special Alloy

HONDA CIVIC TYPE-R (2017 - 2018) EXHAUST, STOCK
2.0L - DOHC V-TEC 16 Valve (K20C1-TURBO)
Exhaust
Head Diameter: 29 mm
Stem Diameter: 5.47 mm
Overall Length: 114.75 mm
Tip Length: 2.1 mm
Reference: 28 Degree Taper Flo.Stock size. Super Alloy

1 mm Oversize

HONDA CIVIC TYPE-R (2017 - 2018) INTAKE, 1MM OVERSIZE
2.0L - DOHC V-TEC 16 Valve (K20C1-TURBO)
Intake
Head Diameter: 36 mm
Stem Diameter: 5.48 mm
Overall Length: 117.25 mm
Tip Length: 2.1 mm
Reference: 20 Degree Super Flo. +1 mm oversize.Special Alloy

HONDA CIVIC TYPE-R (2017 - 2018) EXHAUST, 1MM OVERSIZE
2.0L - DOHC V-TEC 16 Valve (K20C1-TURBO)
Exhaust
Head Diameter: 30 mm
Stem Diameter: 5.47 mm
Overall Length: 114.75 mm
Tip Length: 2.1 mm
Reference: 28 Degree Taper Flo. +1 mm oversize.Super Alloy

DESCRIPTION

Xtreme Clutch, the performance and racing division of Australian Clutch Services, has recently launched a new range of performance clutch kits to suit the Honda Civic Type R. These new kits have been designed specifically to provide improved throttle response and increased torque capacity.

Each of the kits utilises an alloy cover which reduces the mass of the clutch and flywheel package. Combine this with a flywheel made from 4140 chromoly, and the clutch kits offer improved throttle response due to the weight saving whilst retaining enough mass for ease of driveability on the street. Several kits are available for the vehicle depending on the performance goals and application of the vehicle. “We have developed a wide range of kits for the Civic Type R including a 240mm single disc kit in organic, ceramic and carbon, as well as a 230mm twin disc kit in organic, ceramic and carbon.” Explains Xtreme Clutch Mechanical Engineer, Stewart Furze, “These kits have been designed as a solution for various vehicle usages as well as the horsepower and torque goals.” The single disc kits are expected to be the highest selling option with the road going organic kit designed to handle 600Nm of engine torque, making it ideal for those who have made performance upgrades but still need to use the vehicle every day.

The ceramic kits are more suited to racing applications where the heat capacity of the ceramic friction material is required. The ceramic disc also takes the torque capacity up to 900Nm of engine torque and is designed for those who have made serious modifications to the vehicle and are using it predominantly on the track. The 230mm twin disc kits are designed specifically for exceptionally high horsepower vehicles that have major engine modifications. “Our 230mm twin disc range was designed with one thing in mind, to provide a clutch solution for those who are building exceptionally high horsepower vehicles but still require a variety of friction material options for road or track use.” Says Mr Furze, “Our twin disc organic kit is still a street clutch, but with two discs now providing the drive, it can handle up to 1190Nm of engine torque and still be driven on the street every day.” Again, the ceramic version of this kit is predominantly for track use but offers a 1810Nm torque capacity. “The kit’s lightweight construction along with the major increases in torque capacity make these kits the ideal upgrade for those looking to gain more performance out of their car or for those looking for a tougher clutch to handle the increases in torque.” Explains Mr Furze, “We also provide everything required with the kit including a pilot bearing, bolts, thrust bearing and alignment tool for ease of fitment.”

COMPATIBLE VEHICLES

• Honda Civic Type R | FK2 2.0T K20C1 | 2015-2016
• Honda Civic Type R | FK8 2.0T K20C1 | 2017+

FITTING DETAILS

Dream Automotive offers in-house fitting on all products at our workshop in Bushey, Hertfordshire. Here are the important things you need to know:

• Fitting Cost - £
• Fitting Time - Hours
• Required Additional Items/Services - No additional items or services needed.
• Dream Automotive Recommends - No additional recommendations.

AVAILABILITY

Stock Item (Single/Twin Organic) - All other variants 10-12 weeks

DESCRIPTION

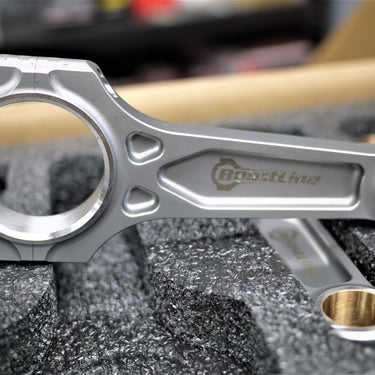

Dream Automotive custom forged connecting rods & ARP bolt set designed to perfectly complement the Honda K20C1 turbocharged engine. Saenz connecting rods are forged, machined with the latest in CNC technology and submitted to exhaustive quality control procedures during the production process.

What differentiates Saenz from the rest, is the fact that they can manufacture the exact design to suit the engine. In other words, it is like a made-to-measure suit!

Since the early '70's Saenz has manufactured connecting rods that have won more than one hundred championships worldwide including two World Rally and one Formula 1 Boat... With more than 50 years of experience and 30 in motorsports.

Saenz connecting rods are forged and heat treated. Polishing, shot peening and roto (REM) finishing are then used to eliminate any machining marks as well as to compact the surface of the rods. The connecting rods are then balanced to within +/- 1g

Connecting rod bushes are made from C630 bronze-aluminium alloy. The bush seats are bored, honed and polished before the bush is fitted with interference. This means that bush OD is typically, 003” to 006” bigger than the rod hole. Once installed, the bushes are rolled burnished to push the bronze towards the seat surface and also to increase bronze hardness. The bush is then bored to pin size taking the big end bore as a reference. Maximum allowed misalignment in 4” length is .0004”. Pin clearance is then given by honing.

Saenz has been partnered with ARP for more than 30 years!

TECH SPECS

• Custom SAE 4340 steel alloy K20C1 connecting rods
• C630 bronze-aluminium alloy connecting rod bushes
• ARP 2000 connecting rod bolts
• USA sourced materials with aeronautics and special regulations certificates.

WHAT'S IN THE BOX

• Four (4) forged connecting rods & eight (8) ARP 2000 connecting rod bolts

COMPATIBLE VEHICLES

• Honda Civic Type R | FK2/FK8 2.0T K20C1 | 2015+

FITTING DETAILS

Dream Automotive offers in-house fitting on all products at our workshop in Bushey, Hertfordshire. Here are the important things you need to know:

• Fitting Cost -
• Fitting Time -
• Required Additional Items/Services - No additional items or services needed.
• Dream Automotive Recommends - No additional recommendations.

AVAILABILITY

Stock Item

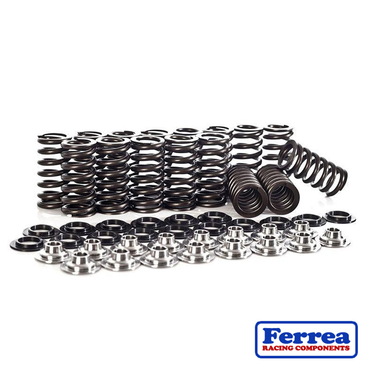

For Honda Type-R K20C1-Turbo

Kit includes the following:
- Single Springs #S10166 (16)
- Titanium Retainers #E11142 (16)
- Int. Seat Locators #SL1154 (8)
- Ext. Seat Locators #SL1153 (8)
- Valve Locks #K10116 (16)
- Roller Rockers #RR1006 (8)

Note: Ferrea Valve Spring Kit S10166 must use Ferrea Rockers RR1006 due to rocker arm and retainer clearances.

DESCRIPTION

The Hondata FK8 Civic Type R fuel system upgrade consists of hardware and software components designed to deliver 24% more fuel flow over the stock fuel system. This system enables the Civic Type R to take the next logical step for a reliable, well-engineered and thoroughly tested power increase.

The Hondata fuel system has been tested on multiple vehicles for over a year and thousands of daily driven miles. Multiple calibrations are included starting with an increase of 90 lb-ft torque and 57 hp over stock with intercooler and high flow cat. On a vehicle with a turbo upgrade we have tested to well over 500hp.

TECH SPECS

• High flow ethanol rated in-tank low-pressure fuel pump
• High flow ethanol rated low-pressure fuel line
• High flow direct injection fuel pump
• High flow high-pressure fuel line
• High flow fuel injectors
• Precision Hondata FlashPro software control
• Multiple calibrations starting with an increase of 90 lb-ft torque and 57 hp over stock  with intercooler and high flow cat

This kit is a plug and play direct bolt-on. Everything can be returned to stock.

WHAT'S IN THE BOX

• Software activation card
• Hondata low-pressure in-tank fuel pump
• Electrical harness
• O-rings (2)
• 1 tube of lubricant
• Filter sock
• Fine tipped flat screwdriver
• Hondata direct injection fuel pump
• Hondata direct injection fuel pump wiring harness
• Hondata low-pressure fuel line with banjo and 2 washers
• Hondata high-pressure fuel line
• Hondata direct injection electrical adapter cable
• 4 high flow fuel injectors

COMPATIBLE VEHICLES

• Honda Civic Type R | FK8 2.0T K20C1 | 2017+

FITTING DETAILS

Dream Automotive offers in-house fitting on all products at our workshop in Luton, Bedfordshire. Here are the important things you need to know:

• Fitting Time -
• Required Additional Items/Services - FK8 FlashPro
• Dream Automotive Recommends - No additional recommendations.

Fitting Instructions

Improper installation and/or adjustment of this product can result in major engine and/or vehicle damage.

It is the responsibility of the installer and/or user of this product to ensure that it is used in compliance with all applicable local laws and regulations. If this product was purchased in error, do not install and/or use it. The purchaser must arrange to return the product(s) for a full refund.

Dream Automotive accepts no responsibility for engine and/or vehicle damage, personal injury, or invalidation of any manufacturer warranty resulting from the installation and/or adjustment of this product.

FAQ

Q. Do I need a FlashPro?
A. Yes

Q. What vehicles does this cover?
A. The FK8 Civic Type R.

Q. What calibrations will FlashPro Manager come with?
A. All existing calibrations support the new fuel system. There are a number of starting calibrations tuned for an intercooler and downpipe.

Q. Was this testing done with built engines?
A. No. All test vehicles had stock blocks and heads.

Q. Are all the parts necessary?
A. Yes

Q. Are the parts available separately?
A. No

Q. How long does it take to install this kit?
A. 4 hours to 1 day depending on experience and tools

Q. Can I return it to stock?
A. Yes

Q. Do I need any special tools?
A. Yes, Honda fuel nut wrench 07AAA-TBAA100 is recommended to remove the in-tank pump securing ring.

AVAILABILITY

Stock Item

Dream Automotive Replacement Sports Catalyst for Honda Civic Type R FK8 model

The Dream Automotive Sports Replacement Cat for the Civic FK8 is made from lightweight T304 stainless steel for a longer life and to give the owner a higher flow rate with reduced back pressure to release the engine full capabilities.

We have achieved this by utilizing incorporating a tangential bend turbo outlet ensuring a perfect transition to its 7 inch cat that is emission friendly whilst also matching the performance of a standard 3inch decat pipe.

Hand made to the highest standard and TIG welded here in the UK, using machined flanges we can promise an OEM fitment.

4 week lead time

DESCRIPTION

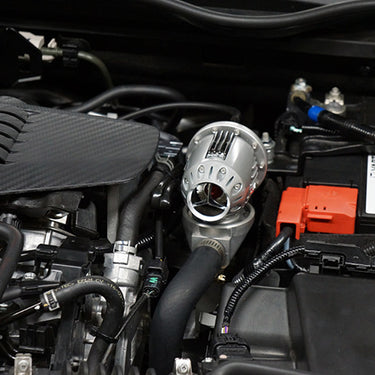

HKS Super SQV (Sequential Blow Off Valve) uses a unique sequential valve structure and a differential pressure control system, which allows for a broad operating range from low boost to high boost. Its Pull-Type relief design ensures stable operation regardless of the amount of boost pressure. This Super SQV maximises the charge-response that repeats pressure-charging and pressurised air relief by throttle on and off and supports new generations of turbocharged vehicles.

Factory recirculation valve sound cannot be noticed, but once HKS Super SQV IV is installed, its unique & sharp high-frequency sound demonstrates its existence. Super SQV IV significantly increases its presence and improve the engine compartment appearance. To match with the appearance created by HKS Intercooler Piping Kit, the buff-polished casting pipe is included. By both the sound and appearance, Super SQV IV increases the fun to drive.

TECH SPECS

1.High Quality Aluminum Die-Cast Body

Silver-coated aluminium die-cast body. Combines the ultimate in looks and durability in the engine compartment.

2.High Stiffness Metal Die-Cast Valve

Secondary valve main portion is made of die-cast metal. Reliable operation with beautiful looking.

3.Triple Fin design produces “Super Sound”

Triple Fins set at the centre of the funnel produces a dynamic and aggressive sound. An optional special Round Fin can be purchased separately for sound tuning.

1.Pull-Type Relief Valve Operation

The Pull-Type valve operation offers more precise relief of excess boost and is compatible for a wider range of boost pressure compared to typical push-type blow off valves.

2.Primary Valve (Small)

Lift off the throttle, and the primary valve instantly opens, quickly discharging initial excess boost pressure.

3.Secondary Valve (Large)

This valve combined with the Primary Valve from the sequential dual valve structure. Optimal blow-off operation from how to high boost ranges without leaking.

Dual Valve Structure, Sequential System

At low boost ranges the Primary Valve opens, and at high boost ranges the Secondary Valve also opens, resulting in linear response and optimal blow-off operation at all boost levels.

Pull-Type blow off valves will work for any turbocharged vehicle, from stock to highly tuned.

Typical push-type blow off valves require spring load settings for each vehicle specification. If the spring load setting is too low, the valve may leak under high boost and the desired boost setting may not be reached. If the spring load setting is too strong, it may not open at low boost. The Super SQV will operate under any boost pressure setting without leaking.

COMPATIBLE VEHICLES

• Honda Civic Type R | FK8 2.0T K20C1 | 2017+

FITTING DETAILS

Dream Automotive offers in-house fitting on all products at our workshop in Luton, Bedfordshire. Here are the important things you need to know:

• Fitting Cost - £75
• Fitting Time - 1.25 Hours
• Required Additional Items/Services - Requires modification to fit with Eventuri air box.
• Dream Automotive Recommends - Intercooler Piping Kit (13002-AH001)

AVAILABILITY

Stock Item

DESCRIPTION

HAMP (Honda After Market Parts) filters are a favourite of Honda owners and after customer requests, we now stock them. This version is the sort after 'Shortie', it's known for increasing oil pressure by 3 to 4 psi, plus these are used by Japanese race teams such as Spoon Sports, so you know these are going to be good!

These filters are designed by Honda in order to give high quality long lasting oil filtration of engine oil, ensuring your oil is free from thickened lumps and/or oil debris. Hamp Synergy incorporates a dynamically adjusting release valve that adjusts to the surrounding conditions to keep oil flow and pressure constant and consistent.

COMPATIBLE VEHICLES

• All Honda engines (apart from the NSX, Insight & diesels)

AVAILABILITY

Stock Item

DESCRIPTION

AMSOIL Synthetic Manual Synchromesh Transmission Fluid is a premium-quality synthetic lubricant designed to surpass the most demanding lubrication requirements of manual transmissions and transaxles where non-extreme-pressure fluids are used. AMSOIL Synthetic Manual Synchromesh Transmission Fluid protects gears and bearings in extreme temperatures. It outperforms conventional oils and delivers outstanding performance from -40°F to 300°F, and it maximizes energy efficiency and resists the effects of heat, oxidation, sludge and varnish deposits unlike its mineral oil counterparts.

AMSOIL Synthetic Manual Synchromesh Transmission Fluid prevents the thinning effects of mechanical shear for stable viscosity, superior film strength and excellent anti-wear performance. It protects against corrosion, keeps seals soft for long life, and is compatible with brass synchros for smooth synchromesh shift quality even in cold conditions. Ideal for Many General Motors, Chrysler, Honda and Other Vehicles AMSOIL Synthetic Manual Synchromesh Transmission Fluid is a higher quality, lower cost replacement for multiple vehicle manufacturer-branded products. This premium synthetic formulation provides enhanced anti-wear protection and lasts longer in service.

Replaces Honda Genuine MTF fluid for manual transaxles and Texaco MTX fluid. Not for use in engines, hypoid rear axles, limited-slip or wet-clutch applications.

TECH SPECS

• Replaces genuine Honda MTF fluid for manual transaxles and Texaco MTX fluid. Not for use in engines, hypoid rear axles, limited-slip or wet-clutch applications.
• 5w30
• Recommended for 50,000 miles service intervals or longer (up to 150,000 miles) as indicated in the owner's manual.

WHAT'S IN THE BOX

• 0.9L per bottle (2.2-2.6L required for full gearbox service)

COMPATIBLE VEHICLES

• Honda Civic Sport | FK7 1.5T L15B7 | 2017+
• Honda Civic Type R | FK2 2.0T K20C1 | 2015-2016
• Honda Civic Type R | FK8 2.0T K20C1 | 2017+

FITTING DETAILS

Dream Automotive offers in-house fitting on all products at our workshop in Bushey, Hertfordshire. Here are the important things you need to know:

• Fitting Cost -
• Fitting Time -
• Required Additional Items/Services - No additional items or services needed.
• Dream Automotive Recommends - No additional recommendations.

FAQ

Q. How many litres are required for a full gearbox oil change?
A. 2.2L (2.6L for dry fill)

AVAILABILITY

Stock Item

DESCRIPTION

COMPATIBLE VEHICLES

• Honda Civic Type R | FK2 2.0T K20C1 | 2015-2016
• Honda Civic Sport | FK7 1.5T L15B7 | 2017+
• Honda Civic Type R | FK8 2.0T K20C1 | 2017+

AVAILABILITY

3-5 Days
