Genuine Honda front brake discs

Honda recommends replacing the brake disc screws when changing the discs.

Sold as a pair.

Lead time: 2 days

Genuine Honda rear brake discs

Sold as a pair.

Lead time: 2 days

OEM replacement drilled front discs made from G3000 material.

Sold as a pair.

OEM replacement drilled Rear discs made from G3000 material.

Optional drilling and grooving available.

Sold as a pair.

DESCRIPTION

Essex Racing designed AP Racing Pro 5000 R Radi-CAL competition brake kit is designed and tested specifically for track day enthusiasts and for drivers who demand the utmost performance from their cars. These kits offer superlative performance for both normal driving and demanding track day sessions.

The CP9660 and CP9668 calipers share many similarities, including a close visual resemblance. Both are forged, two-piece designs with a removable bridge for quick and simple pad changes. They share the same ventilated stainless steel, domed-back pistons with anti-knockback springs, and high temperature, low drag internal piston seals. Piston bore sizes are the same (27mm x 2, 31.8mm x 2, 38.1mm x 2) and both calipers have a hard anodized finish. They also feature internal fluid porting that eliminates an external fluid crossover pipe, and they each have only two inner, and no outer, bleed screws. The two designs also use the same pad backing plate shape, and share the same 180mm mounting centres and 42mm mounting offset on the inner caliper halves. They run on discs of similar size, but that's where the two designs diverge a bit.

The primary difference between the CP9660 and CP9668 is width. Even though the mounting offset on both calipers is the same (making them interchangeable on the same disc), both halves of the CP9660 are narrower than those of the CP9668. When installed on the same disc as the CP9660, the CP9668 will sit 11mm further inboard, while also extending 14mm further outward towards the wheel spokes.

The additional width of the CP9668 increases unsprung weight but was implemented to allow for a thicker brake pad to extend pad life. The CP9668 leverages a 25mm thick pad, while the CP9660 accepts an 18mm thick pad (standard OEM pads approx. 12mm).

Essex Designed Pad Tension Blocks are precision machined from billet aluminium, hard anodized, and topped with a heat-treated stainless steel spring. These anti-rattle blocks install in place of the original pad retention blocks in AP Racing's CP9660/CP9668 calipers. They place a small amount of tension on the top of the pad, substantially decreasing its movement inside the caliper. Included in each Pad Tension Kit are four pad tension blocks, which is enough for two AP Racing calipers.

• DS2500 (Fast Road/ Light Track) - Although we always recommend using a dedicated race pad for the track, the DS2500 is one of the best hybrid street/track pads on the market. It features the moderately high bite and solid fade resistance of a track pad, with the relatively low dust and noise levels of a street pad. When used as a street pad, it can produce some squeal on certain vehicle platforms. During aggressive driving the DS2500 is known for its flat torque curve, which means as temperatures go up, the response through the brake pedal remains consistent.

• DS1.11 (Track) - One of Ferodo Racing's latest endurance race pad offerings. It has slightly less bite at high temps. vs their older DS3000, but doesn't decompose nearly as quickly under extended heavy use on the track. The DS1.11 is known for its extremely flat torque curve, which means that as temperatures go up, the response through the brake pedal remains consistent. The DS1.11 can be thrashed all day without having it burn up or fade, it's easy on discs, and doesn't have many of the judder or vibration issues that competing products have. If you want an extremely solid, all round race pad that will perform well and last a long time, the DS1.11 is the perfect choice.

• DSUNO (Track) - Ferodo Racing has made great strides in pad development over the past few years, and DSUNO is their latest offering. For customers who enjoy the performance of the DS1.11, but just want a little more bite, we recommend the DSUNO. It doesn't wear quite as well as the DS1.11, but it does offer a higher overall mu once it reaches track temperatures.

TECH SPECS

• AP Racing Pro 5000 R Radi-CAL CP9660/CP9668 6 piston asymmetric forged two-piece aluminium alloy body with high-temperature inner pressure seals & dust boots.
• Stainless steel pistons
• 4lb anti-knockback springs
• Stainless steel wear plates
• 355mm x 32mm, 72 vane AP Racing 2-piece floating J Hook discs
• Spiegler stainless steel braided brake lines
• CNC billet caliper adapters & mounting hardware
• Saves 5 unsprung lbs. from nose vs. OEM brakes
• Every component designed to resist the heat of extended track sessions
• Pistons sized properly to allow for seamless integration with OEM master cylinder and ABS system.
• Designed to work with OEM rear brakes

WHAT'S IN THE BOX

• Calipers (2)
• Discs (2)
• Essex Racing pad tensioners (optional)
• Ferrodo brake pads (optional)
• Metal-braided hoses
• CNC billet caliper adapters & mounting hardware

COMPATIBLE VEHICLES

• Honda Civic Type R | FK2 2.0T K20C1 | 2015-2016
• Honda Civic Type R | FK8 2.0T K20C1 | 2017+

FITTING DETAILS

Dream Automotive offers in-house fitting on all products at our workshop in Luton, Bedfordshire. Here are the important things you need to know:

• Fitting Time -
• Required Additional Items/Services - No additional items or services needed.
• Dream Automotive Recommends - No additional recommendations.

AVAILABILITY

Lead Time Varies

DESCRIPTION

Brembo's GT systems are designed and tested specifically for track day enthusiasts and for drivers who demand the utmost performance from their cars. These kits offer superlative performance for both normal driving and demanding track day sessions.

The heart of the kit consists of monoblock calipers machined from a single billet of cast aluminium, which ensure outstanding rigidity and minimised deformation. The discs supplied in the kit feature an exclusive venting system that improves cooling capacity and increases resistance to cracking caused by thermal shock by over 40%. Cross-drilled and slotted finishes are designed and executed with meticulous precision. These holes or slots in the braking surface help dissipate heat and eliminate brake dust and gases.

Type III brake discs have a motorsport developed face with an emphasis on a high initial response while maintaining a smooth pedal release.

• Benefit: The highest overall braking confidence, control and allows the driver to spend less time on the brake pedal. When chasing the fastest lap time, less time on the brake pedal typically leads to a quicker lap time.
• Drawback: Any disc with an aggressive face type like the Type III will have a higher chance to mechanically abrade the pad and disc surface leading to quicker or uneven pad wear. However, this really depends on variables such as car setup or track layout.

Slotted brake discs put an emphasis on stable brake feel and improve resilience against thermal cracking.

• Benefit: Stable braking feel at all temperatures, low disc wear, and continuously refreshing the braking surface for optimum performance.
• Drawback: They have the lowest “initial response” or “bite” compared to cross-drilled or Type III discs.

Cross-drilled brake discs are suitable for a wide range of applications, operating temperatures and driving environments (especially wet weather).

• Benefit: They offer the highest initial response of all the available disc face types, while continuously refreshing the braking surface and being also typically a bit lighter.
• Drawback: Cross-drilled discs are generally more prone to heat checking and thermal cracking if used consistently at extremely high temperatures. This, however, really depends on the track, driver, and chassis setup.

TECH SPECS

• 6 piston cast monobloc radial mount calipers with inner pressure seals & OEM approved dust boots.
• 380mm x 32mm advanced high carbon alloy 2-piece discs (Type III, slotted or cross-drilled)
• Proprietary Brembo stainless steel braided brake lines by Goodridge.
• Brembo engineered CNC billet caliper adapters & mounting hardware.

WHAT'S IN THE BOX

• Calipers (2)
• Discs (2)
• TÜV/DOT homologated metal-braided hoses
• CNC billet caliper adapters & mounting hardware

COMPATIBLE VEHICLES

• Honda Civic Type R | FK2 2.0T K20C1 | 2015-2016
• Honda Civic Type R | FK8 2.0T K20C1 | 2017+

FITTING DETAILS

Dream Automotive offers in-house fitting on all products at our workshop in Bushey, Hertfordshire. Here are the important things you need to know:

• Fitting Cost -
• Fitting Time -
• Required Additional Items/Services - No additional items or services needed.
• Dream Automotive Recommends - No additional recommendations.

AVAILABILITY

4 Weeks

These discs are direct replacements for the OE brake discs and will fit straight to your vehicle without any further modifications required. You will receive a pair of handed discs with specific cooling features for the left and right side of the axle. All TAROX 'Bespoke' discs are made to order at our facility in Italy and are available with the following facings:

• F2000 - Long curved grooves
• Sport Japan - drilled and grooved
• C83 - short straight grooves
• ZERO - plain braking surface

The 'Bespoke' way...

These discs are part of our special 'Bespoke' range which we have compiled to provide a performance solution for vehicles for which parts aren't easily obtainable. Vehicles such as classic sports marques or modern high-performance cars whose drivers seek higher levels of performance from their brake setup. All discs in the 'Bespoke' range are individually CNC machined from a solid piece of steel billet - they are never made in a cast. Once the billet has been machined to the required size it is heat treated and then cooled to unify the structure of the steel and improve strength and durability. This keeps the disc more stable at extreme temperatures. Characteristics such as warping, cracking, fade and knock off are all massively reduced. The longevity of the disc and pad are both extended dramatically. The toughened disc is then grooved and/or drilled as required and finally finished by hand. Each disc is manually ground to a tolerance approaching 0.015mm creating a perfectly level surface to ensure that the discs will run true. In the case of a two-piece disc, the billet rotor is then mated to a CNC machined alloy bell which has been hard anodized for protection from the elements.

The Ultimate Tensile Strength (UTS) for these discs is rated at 57kg per square mm. To put this figure into perspective, the standard for racing spec discs is usually 38kg per square mm and the CEE standard UTS is 25kg per square mm.

F2000 discs are the ideal solution for those who alternate the use of the car on the road with serious sessions on the track. The curved grooves on the braking surface deglaze the pads and allow the disc to run cooler.

Compared to G88 the F2000 discs feature less grooves which strike the perfect balance between heat dissipation and strength ensuring they cope with even the most demanding use on track.

All F2000 discs are based on original equipment specification, TUV approved castings, heat treated for strength and hand finished to ensure the smoothest possible braking surface. TAROX Corsa pads are their ideal partner for track day sessions.

• CNC Machined from steel billet
• Heat treated for strength
• Perfectly flat braking surface
• Precision finished by hand
• Available in a choice of styles

Lead time: 14-21 Days

• PRICE PER AXLE SET (incl. LH and RH disc)

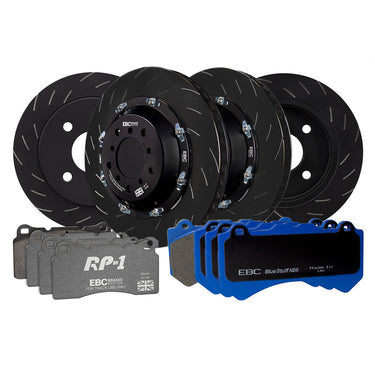

• Engineered, manufactured and run-out tested at EBC's headquarters in Northampton, UK
• Sold as a simple bolt-on 2-piece floating disc upgrade for vehicles with 1-piece cast iron discs fitted as standard (no modification is required to the vehicle to fit 2-piece floating conversion, the EBC disc is a direct replacement to the original disc)
• 48 directionally curved and handed vanes allow effective heat dissipation, resulting in lower operating temperatures that help delay brake fade
• Friction rings cast from G3500 metallurgy with a high copper/high carbon content
• Reduced weight compare to OE discs

 When developing these brake discs, the mission set to EBC Brakes Racing was to engineer one of the highest quality 2-piece brake disc on today's marketplace, at any price point. Consequently, these discs are manufactured from the finest materials and take advantage of state-of-the-art manufacturing techniques, achieving a brake disc of exceptionally high quality.

All outer friction rings are cast from a high-copper, high-carbon G3500 disc alloy giving them a high resistance to wear and cracking, even when used on track or for racing. The cast iron outer ring ‘floats’ on EBC's patented SD-Drive technology bobbins, allowing the friction ring to expand and contract freely by up to 3mm when subjected to the extreme heat generated from hard braking.

The bells are precision machined from aerospace grade aluminium then hard anodised for great looks and excellent durability.

All bobbins are machined from a single piece of stainless steel, preventing unsightly corrosion and ensuring the outer ring continues to float freely, even after years of exposure to road elements. EBC Racing's 2-piece floating discs offer a low maintenance solution that is at home on both the public roads and the race track. Each bobbin location also features an anti-rattle spring clip, meaning these discs are totally silent in operation and do not have the ‘off brake disc rattle’ that is common with many other ‘full race’ 2-piece disc systems.

Upgrading from a 1-piece disc to a 2-piece floating disc will shave crucial kilograms off your vehicles un-sprung rotational mass, providing a noticeable improvement in corner entry turn in, tyre road holding, fuel economy and increasing the BHP at the wheels. Additionally, when the cast iron friction ring becomes worn after a period of use, the outer ring can be replaced independently of the other disc components, allowing the centre hub and stainless bobbins to be re-used which significantly reduces long term running costs.

•              The fully floating disc allows for the friction ring to grow independently of the hub dramatically increasing stopping performance and service life.

•              Our disc will be using stainless steel bobbins and nuts and this will ensure that the bobbins can not corrode in the slots in the disc ring which is a problem common with many other floating discs as the floating function of the disc can lock up with corrosion.

•              Each of our high performance 2 piece disc rings will be cast out of a ‘G3500’ disc alloy this is constructed with a high carbon and copper content and is the highest grade of casting alloy available.

•              By using the ‘G3500’ disc alloy this gives us greater durability and a higher thermal conductivity compared to all other lower quality disc alloys.

•              Each disc will have 48 curved vanes and most importantly will be handed to improve cooling efficiency, unlike many OEM discs these days where the curved vanes run in the wrong direction on one side of the car.

•              The discs are all centre split castings and this gives a more balanced casting compared to a moulded out casting. This means that the disc is less prone to heat distortion and failure.

•              Part of our testing procedure we run the disc through the new industry standard which is called the R90 disc test. To give you an idea about the test it involves running the vehicle up to V-max and doing 2 stops one after the other for 150 cycles.  To give you an idea of how tough this test is we have found generally a OEM disc would only get halfway through this test before failing. Our disc has gone through 2 of these tests with no heat surface crazing or cracking. This demonstrates that our disc can withstand the harshest of track use.

On every mile of every race track the importance of high performance precision braking control has been proven. Total feel and response give you the confidence you need on the road. The difference between an average driver and a great driver is those who can control speed and those who cannot. Speed is nothing without control and it's a very fine line

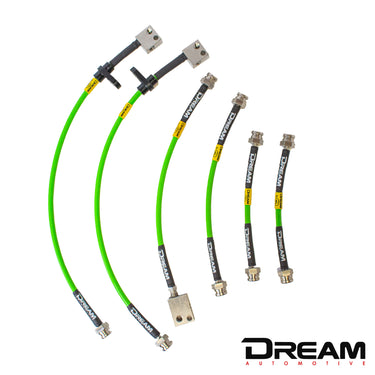

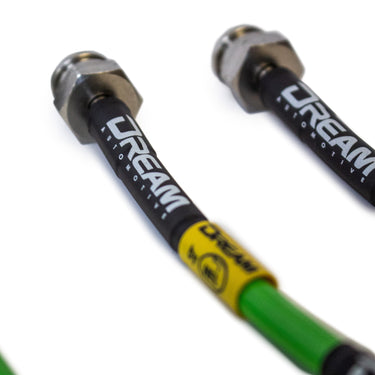

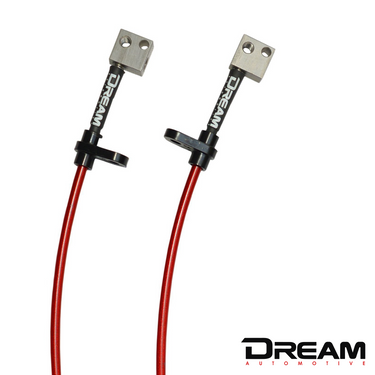

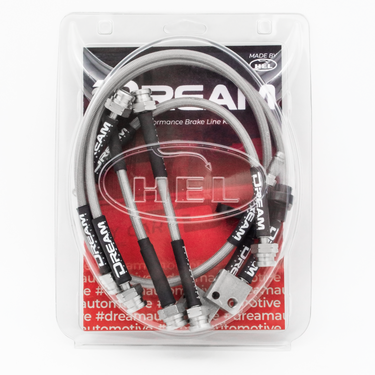

Each Dream Performance brake line kit is assembled in-house from the finest quality stainless steel fittings swaged directly to hard drawn tensile stainless steel braided hose.

Dream Brake line kits eliminate that 'spongy' feeling often found with rubber hoses under extreme braking conditions - the time when performance is needed the most. By replacing the original rubber hoses with our complete system you will remove this sponginess and your braking will deliver new levels of precision.

Includes:

• Stainless Steel Braided Brake Lines (6)
• Stainless Steel Banjo Bolts
• Copper Crush Washers
• Instruction Leaflet
• Lifetime Warranty

Lines:6

• Smoother & Stronger Braking
• Eliminate That Spongy Pedal Feeling
• Sharper and More Responsive Braking
• More Reliable Braking System
• Race Proven Technology
• Lifetime Warranty

Lead time: In stock

On every mile of every race track the importance of high performance precision braking control has been proven. Total feel and response give you the confidence you need on the road. The difference between an average driver and a great driver is those who can control speed and those who cannot. Speed is nothing without control and it's a very fine line - Which is why HEL Performance only supply very fine lines.

Each HEL Performance brake line kit is assembled in-house from the finest quality stainless steel fittings swaged directly to hard drawn tensile stainless steel braided hose.

With our extensive automotive listings the complete kit will be manufactured to exact specifications, guaranteeing the look, the quality and the performance you demand.

HEL Brake line kits eliminate that 'spongy' feeling often found with rubber hoses under extreme braking conditions - the time when performance is needed the most. By replacing the original rubber hoses with our complete system you will remove this sponginess and your braking will deliver new levels of precision.

Don't risk using inferior brake lines when you can trust us to improve braking reliability and performance - We use stainless steel in our lines and our fittings. Most competitors use zinc plated fittings which are at risk from corrosion.

Includes:

• Stainless Steel Braided Brake Lines
• Stainless Steel Banjo Bolts (if needed)
• Copper Crush Washers (if needed)
• Instruction Leaflet
• Lifetime Warranty

Lines:6

• Smoother & Stronger Braking
• Eliminate That Spongy Pedal Feeling
• Sharper and More Responsive Braking
• More Reliable Braking System
• Race Proven Technology
• Lifetime Warranty

Lead time: 2 Weeks

High performance stainless steel braided brake line kit for Honda Civic Type -R FK2 2015 on. Goodridge stainless braided brakelines are the standard in professional motorsports where the ultimate in braking is required. Goodridge brake hoses increase breaking efficiency and removes the spongey feel under arduous conditions. With an unmatched reputation backed by champions worldwide, there is no reason to choose anyone else.

Goodridge lines are made to order with 2 week lead time.

Genuine Honda Brembo Front Brake Pads

Genuine Honda rear brake pads

Lead time: 2 days

RC09 is the Project-Mu brake pad of choice for Club Motorsport.

Be it for circuit racing, time attack, club sprints, tarmac or gravel rally this is the brake pad that offers the very best in performance, feel and release, whilst remaining a budget option.

This pad punches above it's weight and will push aside many other "competition" pads in performance and durability.

RC09 "Club Racer" is based on the DNA of Project-Mu's ultra successful H16-03 Motorsport pad which is one of the world's best race pads. Club Racer is the pad to use of your car spends a majority of it's time on track or rally stage.

Suitable for, circuit racing, time attack, sprints, gravel and tarmac rally.

Available in a range of shapes to suit the most popular applications. Japanese, European, Australian OEM calipers. Evo, STI, HSV or FPV right through to Golf GTI or Porsche GT3. A range of Motorsport shapes are also available to suit AP, Alcon, Brembo, Wilwood etc

Fade Resistance

HC-EP series replaces the HC+ 800 series, available to order now for delivery in early December 2019.

Project Mu HC-EP is a premium Performance Street, Race and Rally brake pad. The HC-EP has more bite than both NS and B-Spec and has excellent fade resistance. Capable of operating at temperatures up to 600°c, this pad will handle almost all serious braking conditions.
HC-EP is a genuine ‘cross over’ pad suitable for both road and race. HC-EP is extremely capable in competition environments so use this pad if you are involved in serious track day, rally etc.
Along with temperature capabilities, HC-EP is renowned as a ‘drivers pad’ with unmatched driver feel and control.


NOT R90 Street/Road Legal or TUV Tested

Fade Resistance

When brake pads operate at high temperatures, high pressure gases can be created in the pad and can cause a 'gas layer' between the pad and rotor. This can make the driver feel like the brakes have lost performance as the brake pedal feels the same, but the car won't slow down as normal. This phenomenon is known as 'fade'. A slot is manufactured in all Project-Mu pads to offer the gases an escape route.

Project Mu NS-EP street pads are developed specifically for street use. Guaranteed to outperform OEM pads, NS-EP pads are a reliable simple way to upgrade your braking performance for minimal cost.

NS-EP street pads give outstanding initial stopping power that is of prime importance on the street. Made from Asbestos-free brake compounds, NS street pads have excellent low dust and squeal properties.

Use this pad if you like to get the most out of your street car.

Fade Resistance

TYPE NS pads offer a well-balanced improvement over the performance of genuine brake pads while reducing dust and noise.

Use this pad if you like to get the most out of your street car.

Fade Resistance

RA – High Friction RACING brake pad with superior brake control

• Consistent operating friction level regardless of condition; high-temperature, high-powered, heavy weight and heavy load driving.
• Braking power which is directly proportional to brake pedal pressure
• Extremely superior brake control with high initial bite
• Continuously consistent rigid brake pedal feel after repeated laps around the circuit
• Perfect for use with slick race tyres , competition-use tyres and high performance radial tyres
• The official brake pads of the Volkswagen Scirocco-R Cup China

Please note: if used for normal street use, the pads may have increased brake dust, noise and decreased disc life. The same issue may occur during circuit-use if the pads operating outside their operating temperature range.

• Friction material – Carbon Semi Metallic
• Initial bite (µ) - 0.51
• Average µ - 0.40-0.45
• Effective temperature range – 200-900°C

Lead time: 2 weeks
