Wagner Tuning Competition Intercooler Kit | Honda Civic Type R | FK8 2.0T K20C1 | 2017+
DESCRIPTION
Competition Intercooler Kit for Honda Civic Type R
The WAGNERTUNING high-performance intercooler has got a new competition core (Tube Fin) with the dimensions 670 mm x 183,4 mm x 125 mm (15.4 litres)/ 26,38Inch x 7,22Inch x 4,92Inch (939,76Inch³), which was developed especially for the requirements of the Honda Civic Type R FK8. This high-performance core offers a 91 % larger frontal surface and 140 % more core volume compared to the stock intercooler.

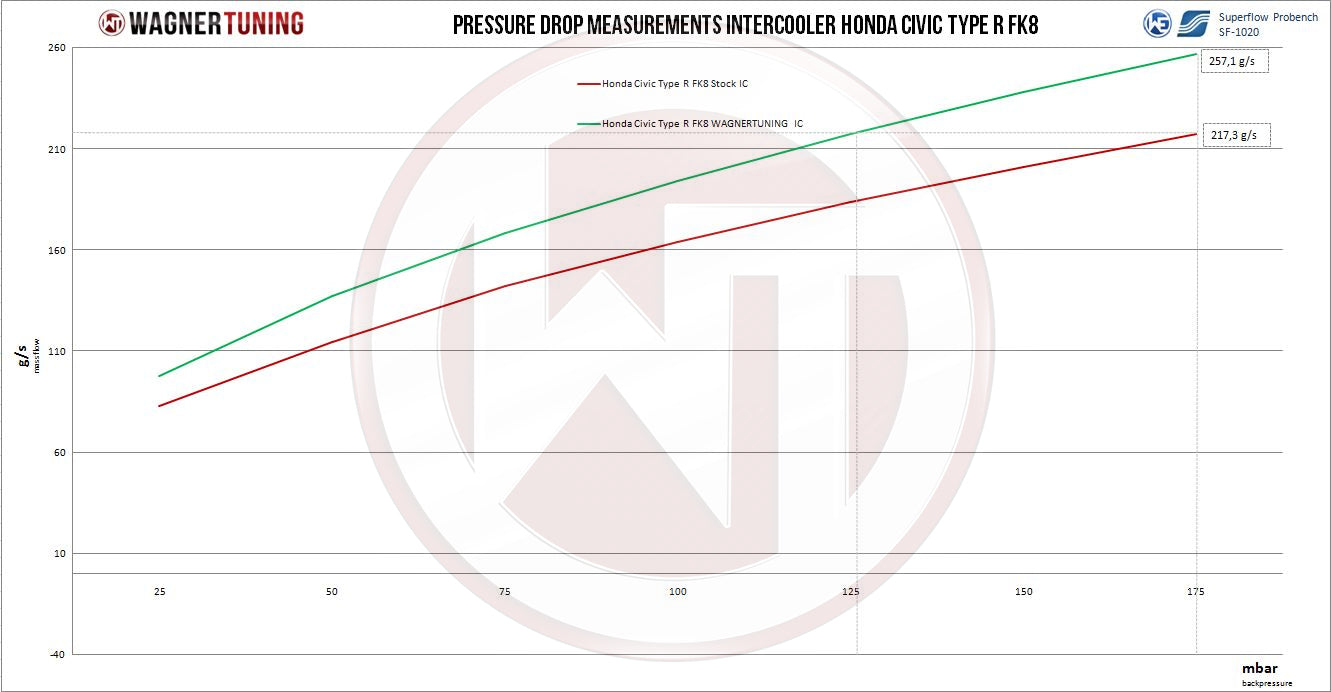

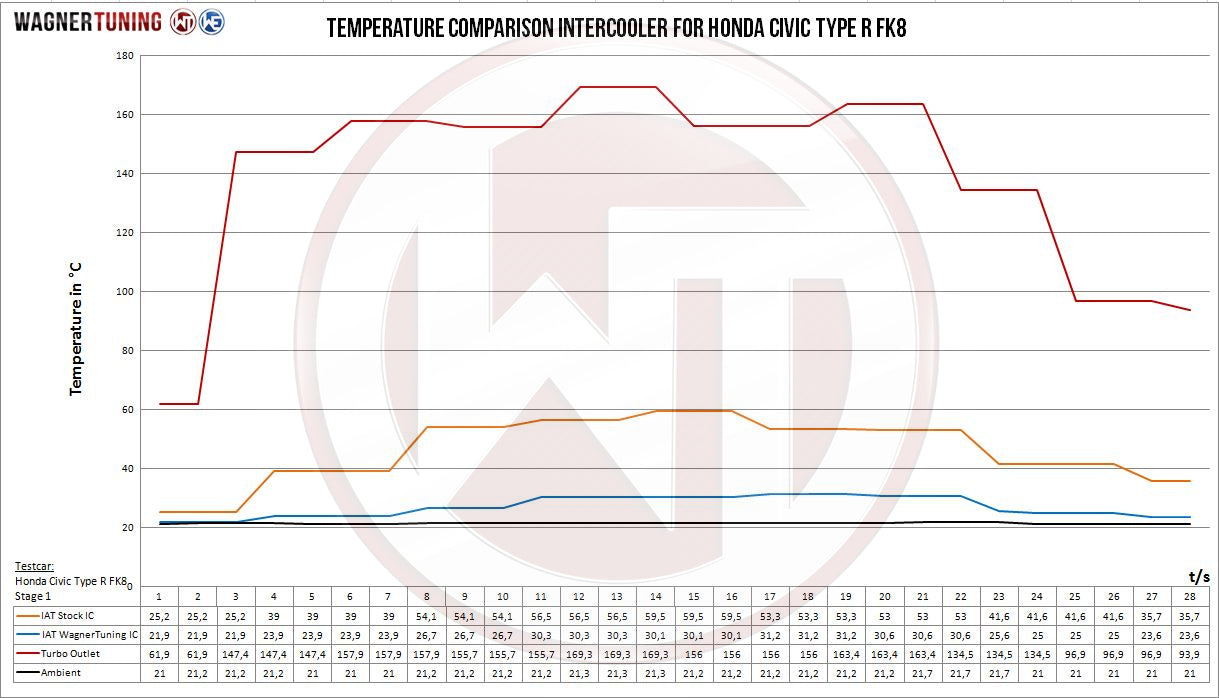

The aluminium cast end tanks were designed in CAD and optimised in CFD simulations (for an ideal internal airflow). An incorporated air baffle inside the intercooler inlet ensures a uniform filling of the intercooler. The result is an excellent cooling property with minimal backpressure. The newly developed competition high-performance core is very light and provides the adjoining components (for example the watercooler) enough airflow by using a specially prepared air baffle. That`s why this kit is perfect for racing use. An optimal cooling effect of the charged air with a significant increase in performance!
An anti-corrosion powder coating with perfect heat-conducting properties protects the WAGNERTUNING intercooler from all environmental influences, so a lasting and optimal cooling effect can be guaranteed. The installation is done by replacing the original intercooler and is easy to perform (plug and play). All our products are subject to continuous quality monitoring.
Inlet diameter: Ø65 mm/2,56Inch ; Outlet diameter Ø70 mm/2,75Inch
OEM Intercooler:
Cooling Surface 924cm²
Charge-Air-Volume 6,2L
WAGNERTUNING Intercooler:
Cooling Surface 1137,5cm²
Charge-Air-Volume 12,5L
Inlet 65mm Outlet 70mm

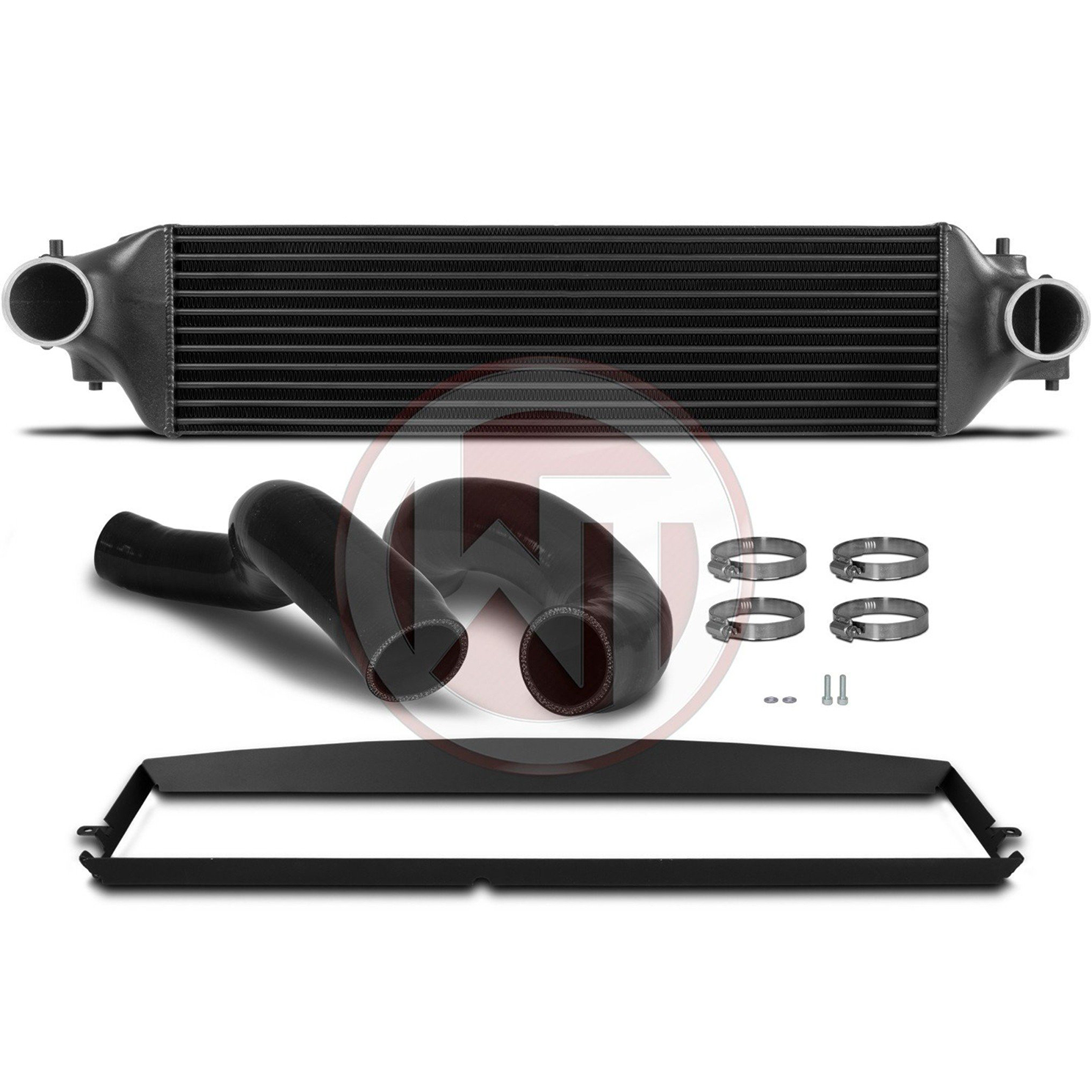

- 1 Intercooler
- 2 Silicone Hose
- 4 Hose Clamps
Dream Automotive offers in-house fitting on all products at our workshop in Luton, Bedfordshire. Contact us for more information
COMPATIBLE VEHICLES
- Honda Civic Type R | FK8 2.0T K20C1 | 2017+
AVAILABILITY
2-4 WEEKS - DUE END OF NOVEMBER
