J's Racing Aero Bonnet Type-V FRP | Honda Civic Type R | FK8 2.0T K20C1 | 2017+
Pickup available at Dream Automotive
Usually ready in 24 hours
Increase the potential of Type R with weight reduction and cooling effect !
-The intake part is designed to be increased in volume in order to actively take in intake air into the air cleaner .
-The K20C engine, which boasts high output, and the V-shaped ducts and main ducts that provide heat generated from the turbine on the left and right generate negative pressure, enabling highly efficient exhaust heat.
Due to the heat exhaust effect from the total duct area of about 150 cm2, not only the water temperature and oil temperature but also the intake air temperature is lowered to bring out 100% of the engine potential . Suppress.
・ In a comparison test with the genuine bonnet conducted at the Suzuka International Racing Course, the water temperature showed a maximum cooling effect of -15 ℃ and an average of -10 ℃ . Also. It has been confirmed to be strong enough to withstand high speeds of 220km or more without a bonnet pin. * Test vehicle: Boost 1.8kgf / cm² / 365ps specifications, temperature 30 ℃, no rain protection
・Further cornering performance is demonstrated by reducing the weight of the genuine bonnet from 9.7 kg to 7.8 kg .
Since it is compatible with genuine bonnet catches, it can be installed by bolt-on even without a bonnet pin!
The cooling aero bonnet, which is indispensable for FK8, which has a big heat damage, is completed!

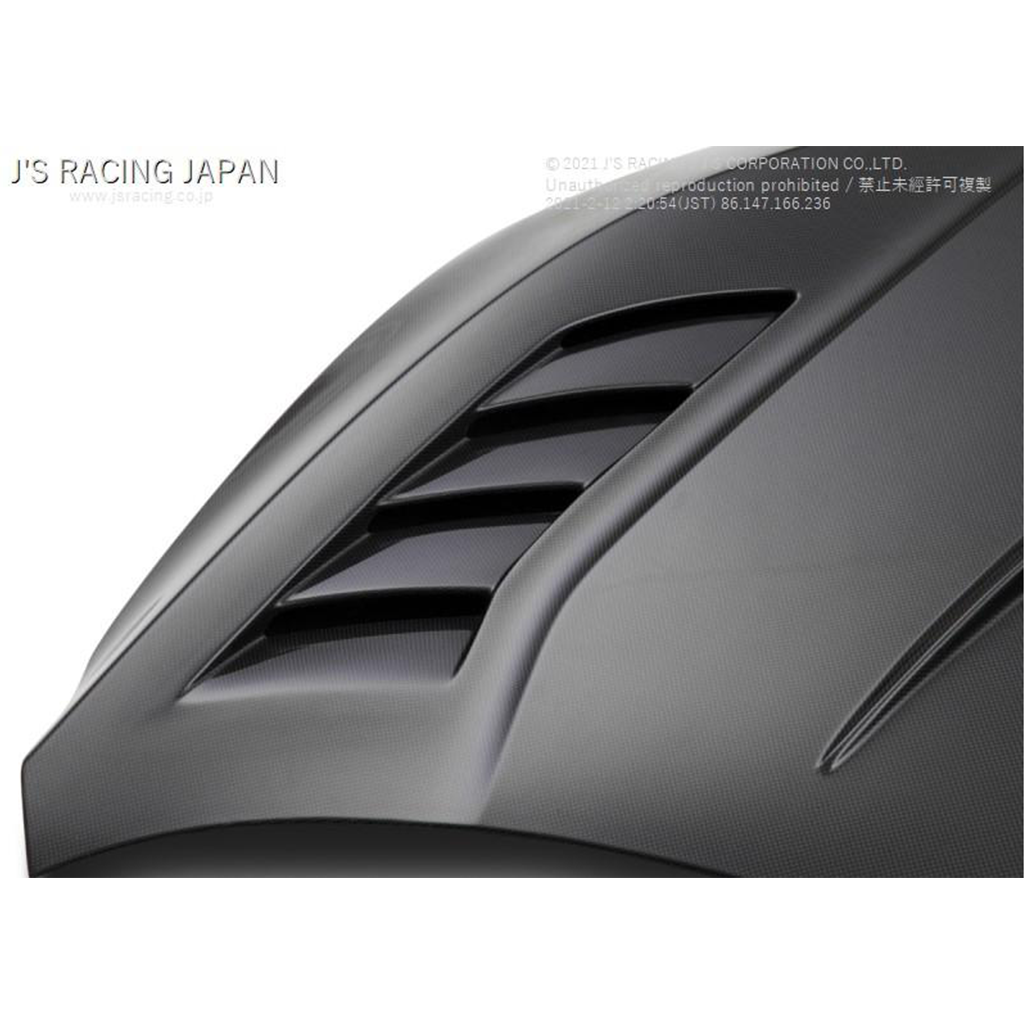

* The image is carbon FRP. This product is made of FRP, so be sure to paint it.
- WEIGHT 7.8 KG (OEM 9.7KG)
- For Civic Type R FK8 type only
Table: FRP made
back: FRP made ※ main painting
- Genuine bonnet catch compatible product (with metal fittings and bolts installed)
- genuine bonnet catch compatible products (already fitting bolt mounting)
- the washer nozzle and the hose should be re-used with the clip provided.
* The image is made of carbon / FRP. This product is made of FRP, so be sure to paint it.
* Be sure to install it to prevent it from falling off while driving.
* Please check the mounting condition regularly.
* Although it is compatible with genuine bonnet catch, it is recommended to install a bonnet pin on vehicles such as during sports driving in the high speed range.
* The inner rain protector and aluminium net of the centre duct needs to be ordered separately as required.
- Honda Civic Type R | FK8 2.0T K20C1 | 2017+
Dream Automotive offers in-house fitting on all products at our workshop in Luton, Bedfordshire.
Contact us for more details.
Made to order in Japan (Approx. 6 months)
