Dream Automotive | FK2 Motorsport Engine Wiring Harness | Honda Civic Type R | FK2 K20C1 2.0T | 2015+

£2,845.00 GBP £2,133.75 GBP Save £711.25 GBP
Tax Included (UK only) Shipping calculated at checkout.

Pickup available at Dream Automotive

Usually ready in 24 hours

Driver Position: RHD

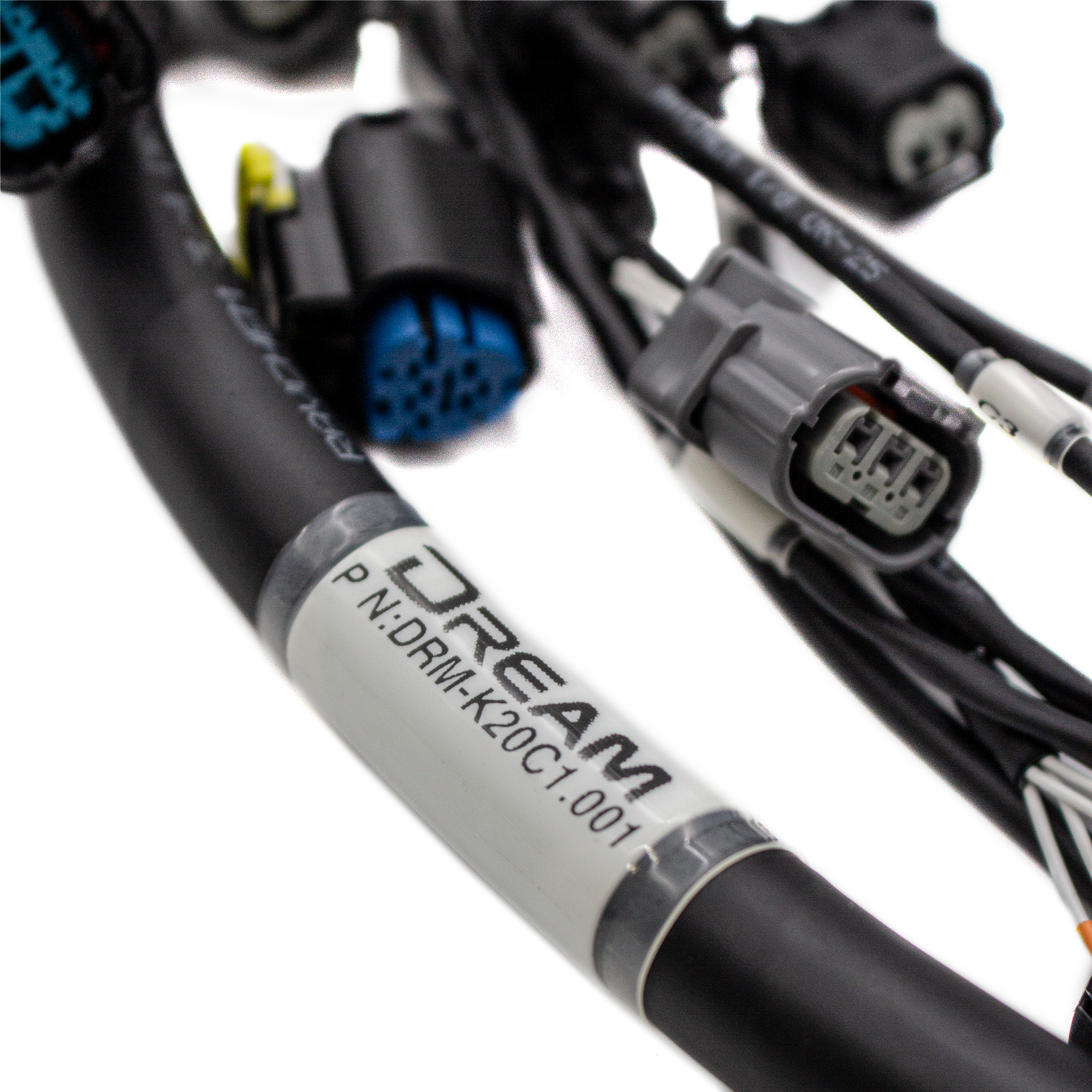

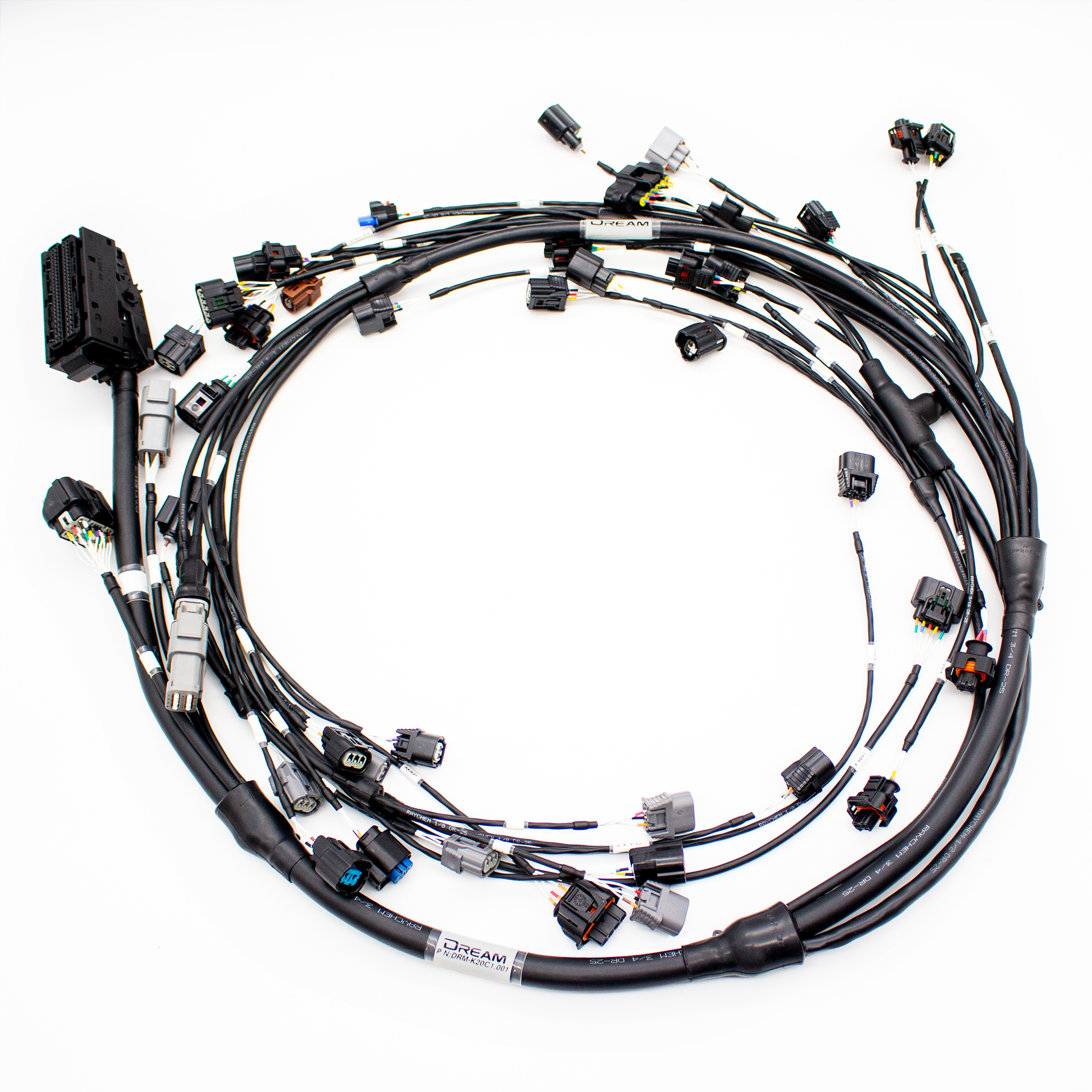

The Dream Automotive engine wiring harness is a new motorsport spec wiring harness that has been developed as a complete replacement of the OEM engine harness which with age is starting to become prone to fatigue issues.

The loom is fully sealed using System-25 techniques and materials, similar to that found in F1 engine wiring harnesses. Inside the seal, we have adopted concentrically twisted construction to aid flexibility as well as provide a smaller and lighter harness that OEM, with a weight saving of over 1KG!

Using a military specification wire called Tefzel, which is stronger and lighter than the OEM equivalent, the ECU plug has been fully sealed to avoid ingress of dirt or moisture

Some of the component wiring has been extended to allow for optimum fitment of aftermarket parts. An example of this is an increased wire length on the MAF sensor to suit many aftermarket intakes.

We have also included additional plugs to allow for the potential to add secondary injectors and driver unit.

Each wiring strand has been labelled to ease installation and diagnosis.


  • FULLY Plug & Play
  • Use of Tefzel (Military Spec Wire)
  • Concentrically Twisted Construction
  • OE Connectors
  • Sealed Gel Membrane in ECU plugs
  • Labelled Strands for ease of installation
  • Over 1kg LIGHTER than OE


  • Complete Motorsport Spec Plug and Play Replacement Engine Harness


  • Honda Civic Type R | FK2 2.0T K20C1 | 2015+


Dream Automotive offers in-house fitting on all products at our workshop in Luton, Bedfordshire. Here are the important things you need to know:


1 In stock


Driver Position: RHD
