Mishimoto Performance Intercooler Kit | Honda Civic Type R | FK8 2.0T K20C1 | 2017+

£1,174.80 GBP
Intercooler Core Colour: Black Core
Hard Pipe Finish: Wrinkle Black Hard Pipe

Pickup available at Dream Automotive

Usually ready in 24 hours

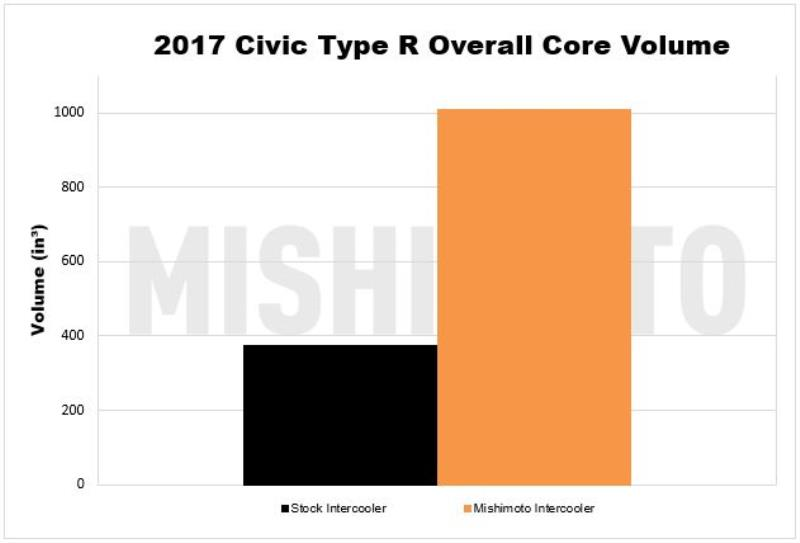

Mishimoto aims to put that power back into your hot-Honda by keeping it cool with the Mishimoto 2017+ Honda Civic Type R Performance Intercooler Kit. We started by increasing the overall size of the core to more than double that of the stock dimensions. The 4.7-inch thick core boasts a 169% increase in overall volume and bumps the external fin surface area by 189% for optimal heat rejection properties.

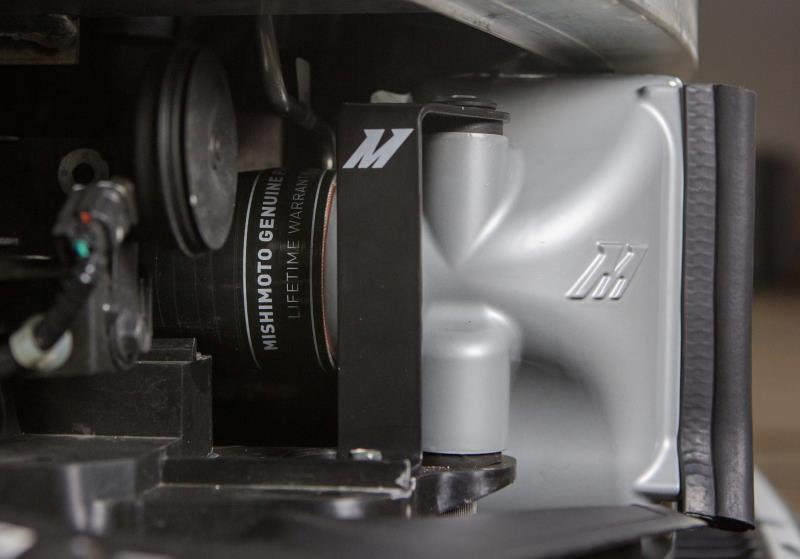

We didn’t stop with the size increase either. To keep the charged air flowing properly through the larger core, we updated to a bar-and-plate core construction. The robust design offers not only improved flow characteristics but also aids in transferring heat away from the charged air. The plastic end tanks are a thing of the past and have been replaced with our sleek cast aluminium designs to more effectively direct airflow to and from the piping.

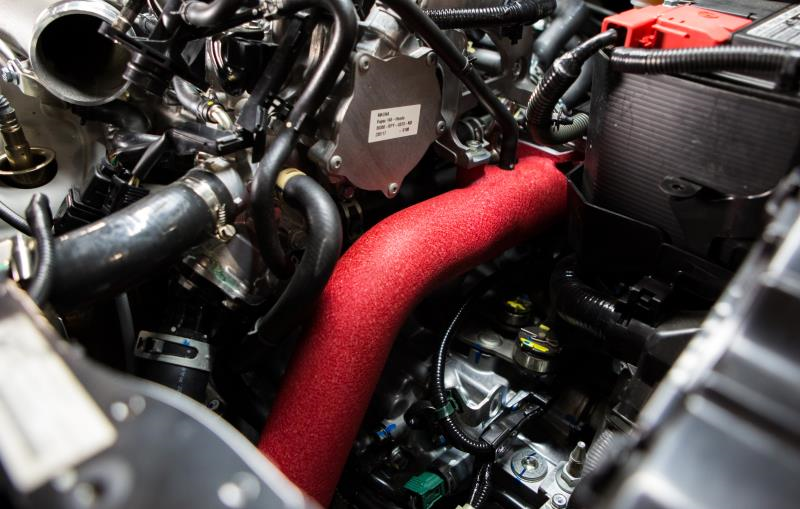

With the Mishimoto Performance Intercooler Kit, the intercooler isn’t the only component that received an update. We took the liberty of overhauling the entire intercooler system. Honda carried some of those sacrifices in the name of mass production over to the intercooler piping as well. The restrictive piping diameters limit the K20C1’s potential to turn up the boost with tunes, and the rubber sections are destined to deteriorate down the line. We updated these charged air channels with a 2.5” mandrel-bent aluminium cold-side pipe. The rubber sections, including the hot-side pipe, were swapped for 5 layers of heat-resistant silicone. Both characteristics will increase the airflow through the system and make sure you never experience a boost leak.

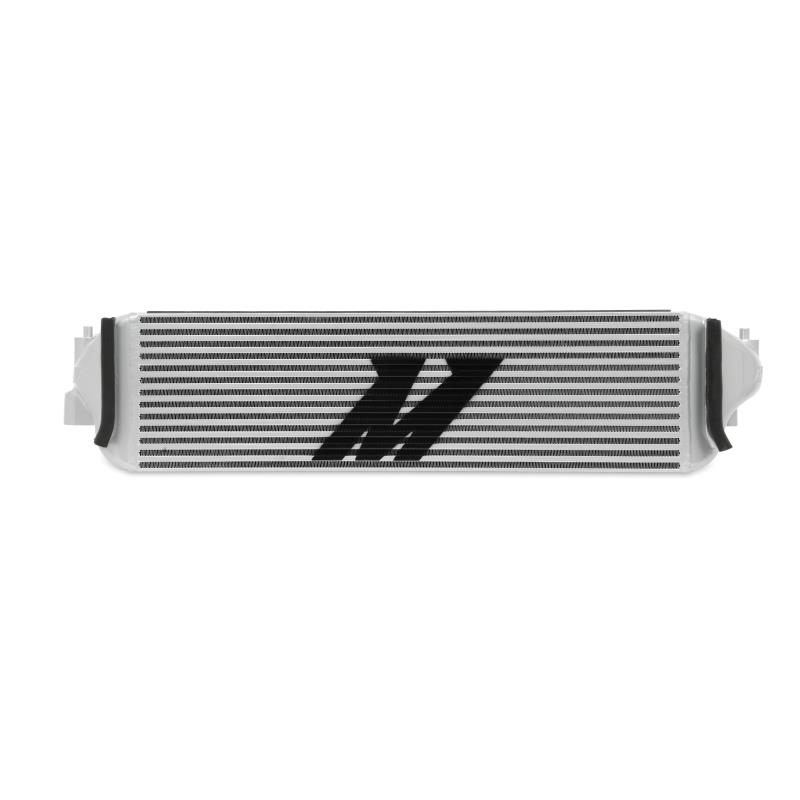

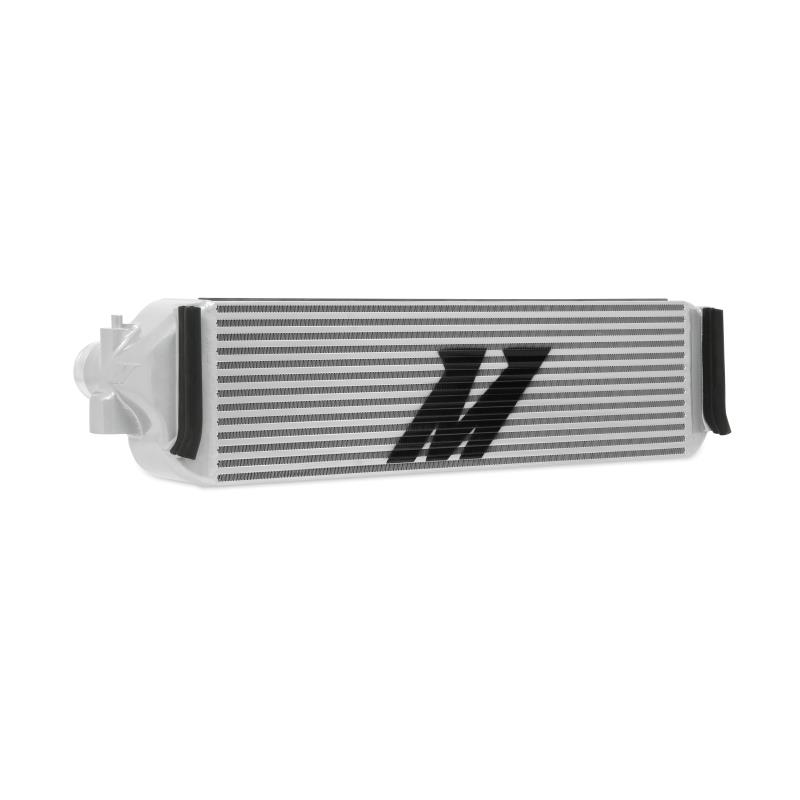

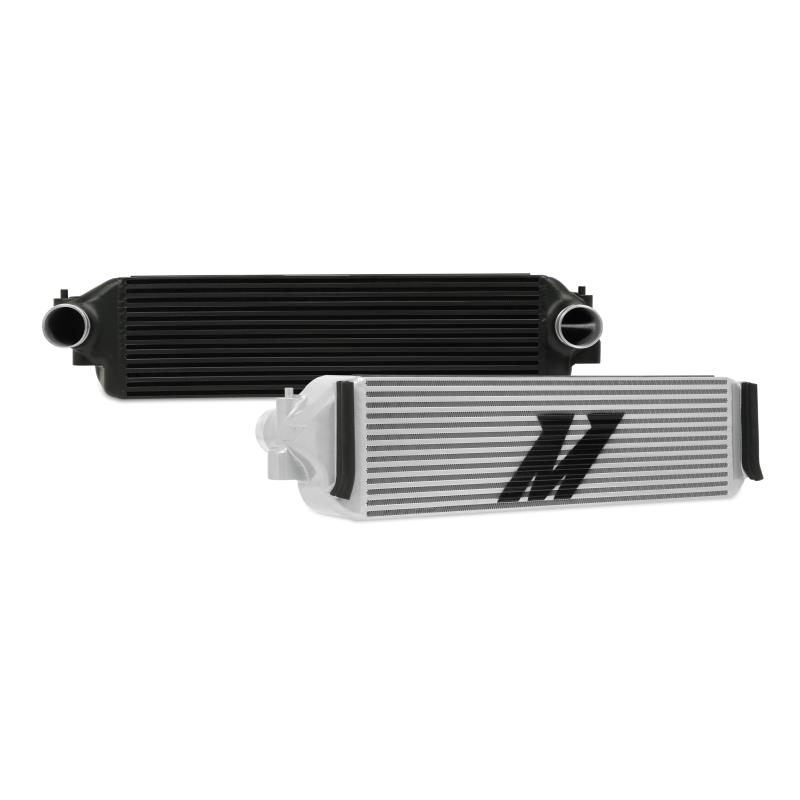

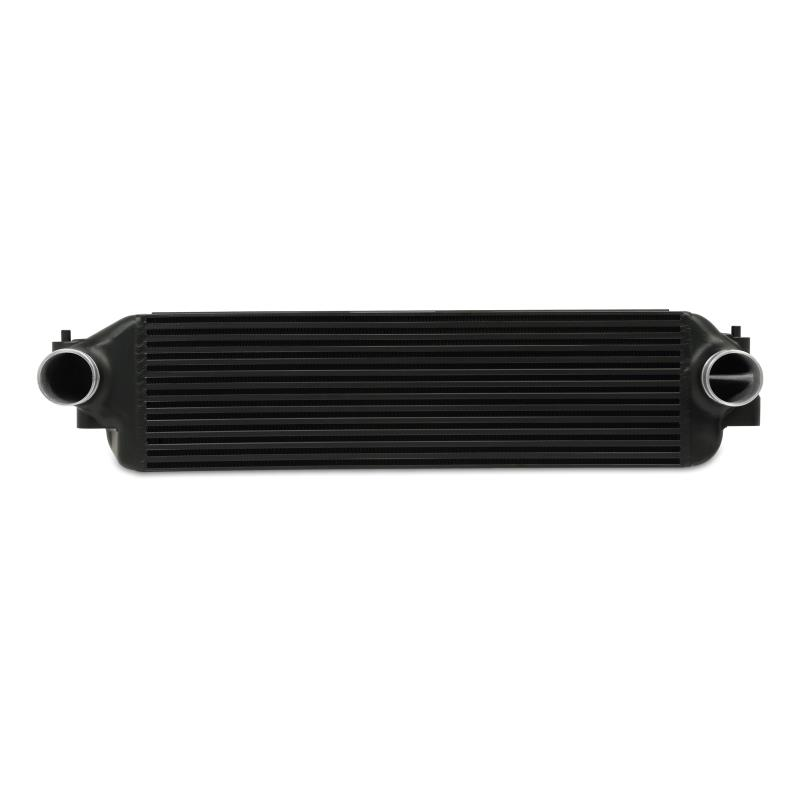

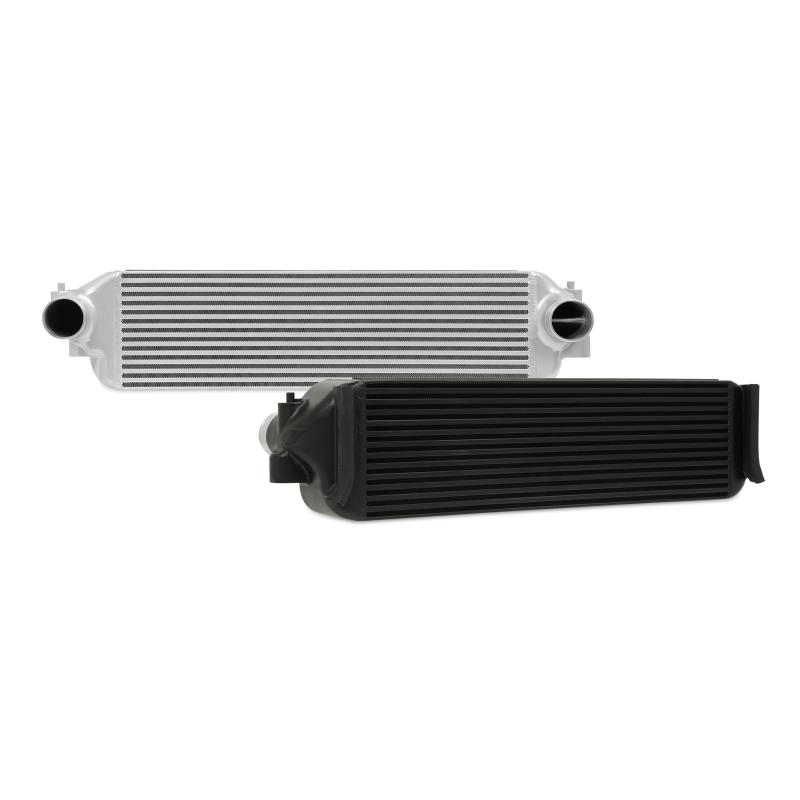

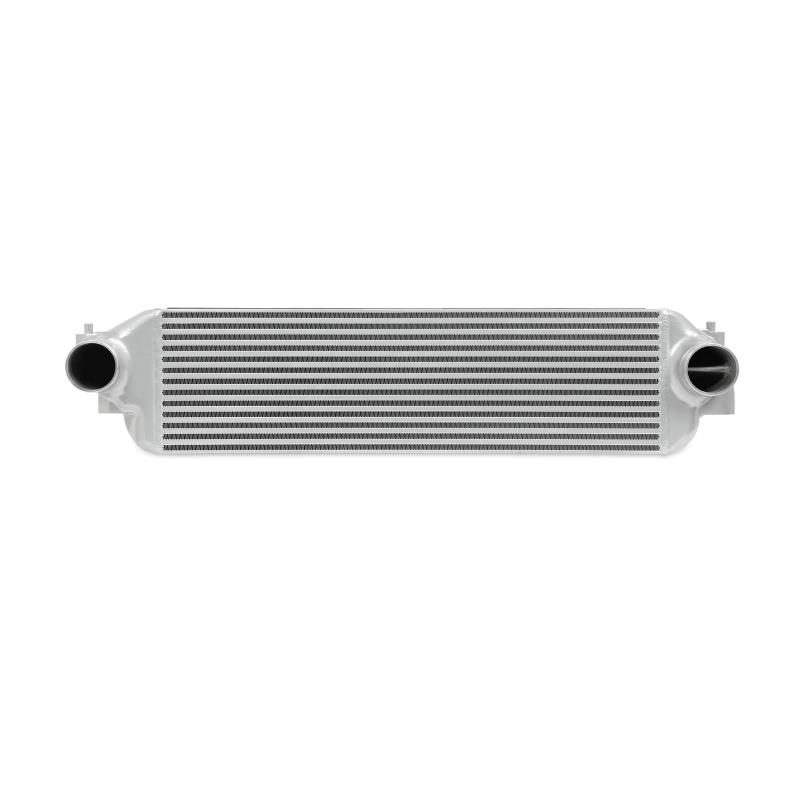

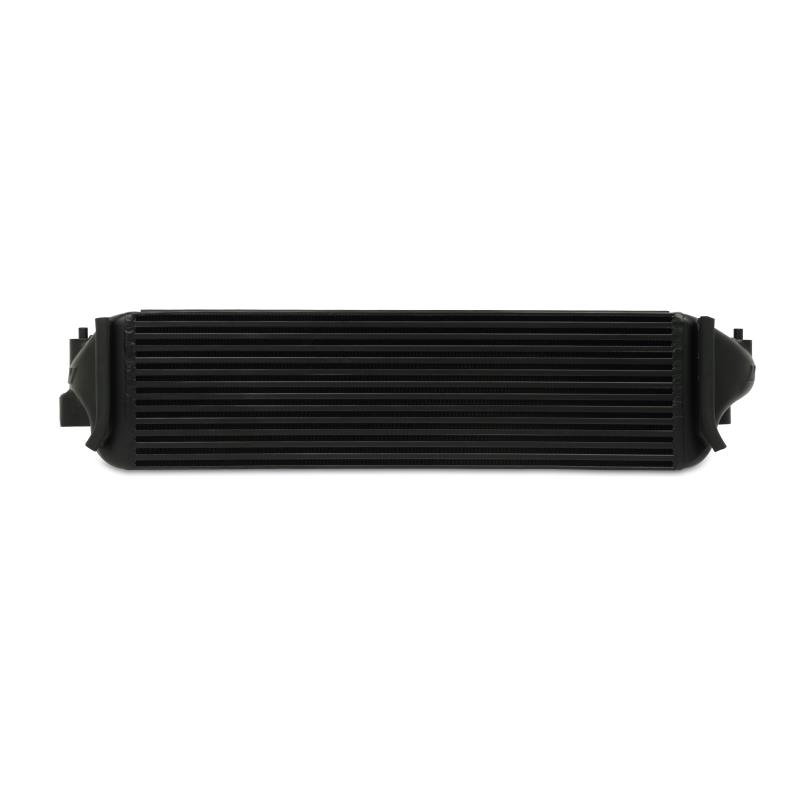

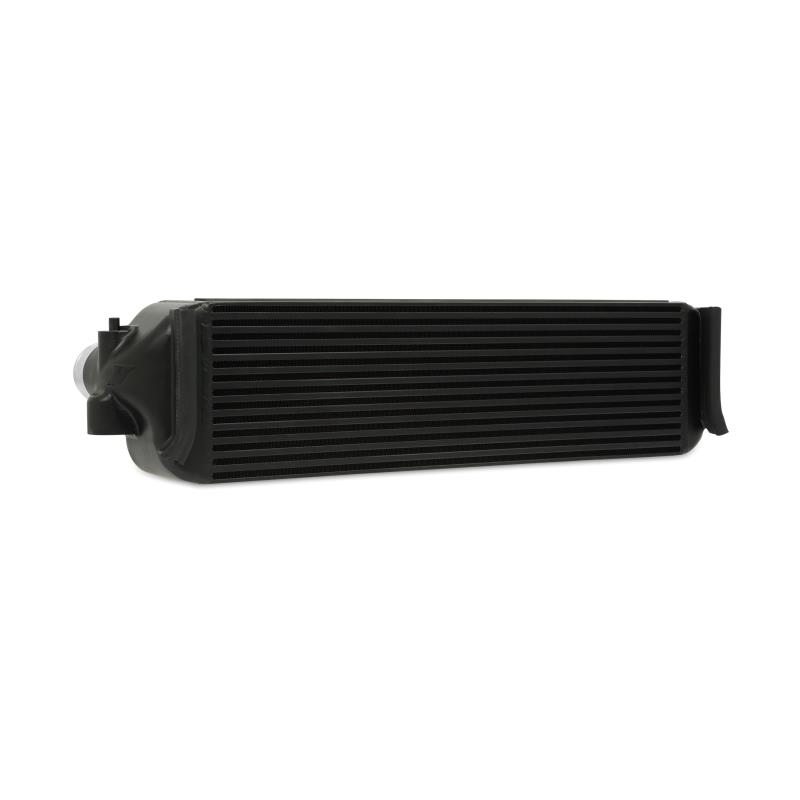

The Mishimoto 2017+ Honda Civic Type R Performance Intercooler Kit comes with either a black or silver intercooler, with the option of wrinkle black or wrinkle red piping to match your style. This kit also includes the Mishimoto Lifetime Warranty to keep you boosting around the track worry-free.

Note - The boost reference port on the cold-side intercooler pipe will have to be plugged for proper use. We would recommend taking the pipe to your local fabricator to have this port properly welded closed. Please reach out to our customer service department if you have any questions.

Vehicles with pedestrian hood pop-up safety systems (manufactured in Thailand) may have fitment issues with this product. It is the customer's responsibility to perform or seek out the proper means of making the modifications necessary for fitment, with the understanding that the hood pop-up system will no longer function as intended. Mishimoto assumes no responsibility for any damages or injuries that occur from a modified safety system

TECH SPECS

  • Cold-Side Intercooler Pipe Specs - 63.5mm
  • Hot-Side Intercooler Pipe Specs - 63.5mm
  • Weight - 29 lbs
  • Coating - Powder Coated
  • Outlet - 63.5mm
  • Inlet - 63.5mm
  • Core Size - 710 x 194 x 120mm
  • Construction - Bar-and-Plate
  • 120mm thick intercooler design optimized for maximum flow

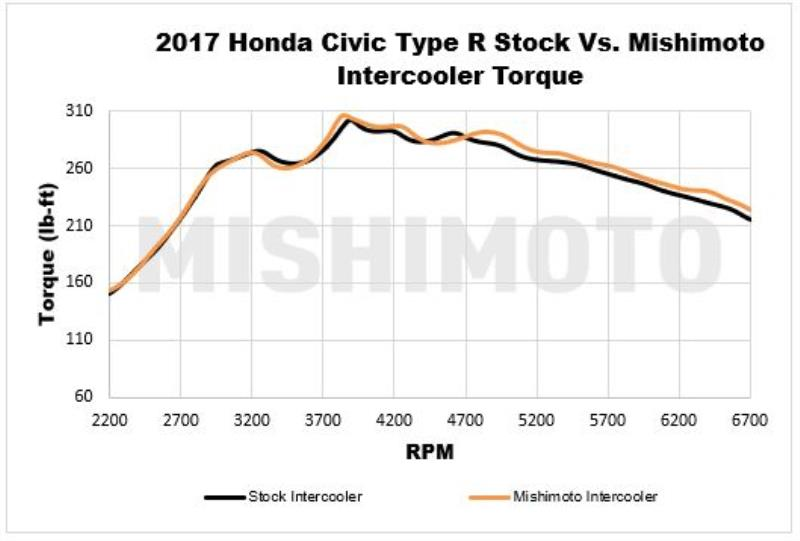

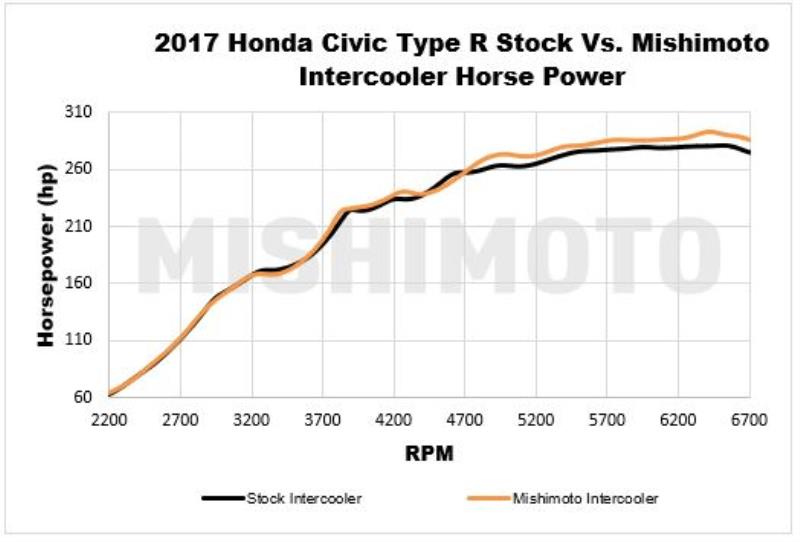

  • Max power gains of up to 10 whp and 10 wtq

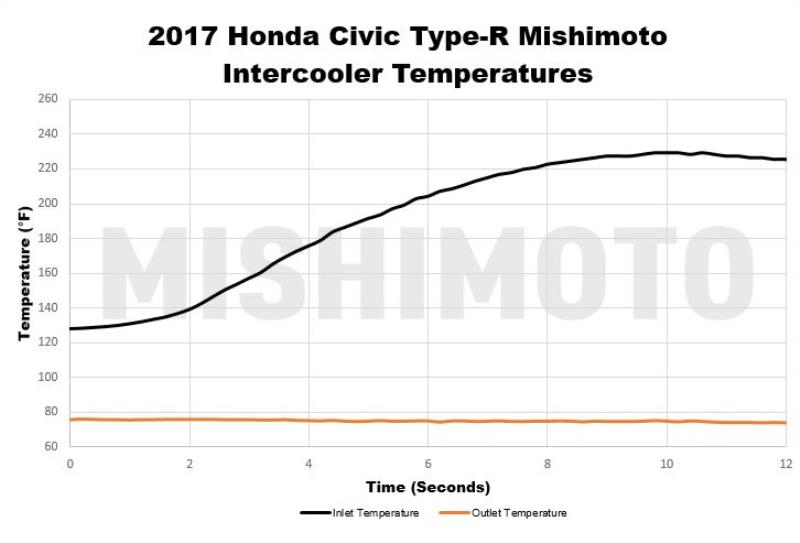

  • Drops outlet air temperatures by 10°C on stock tuning

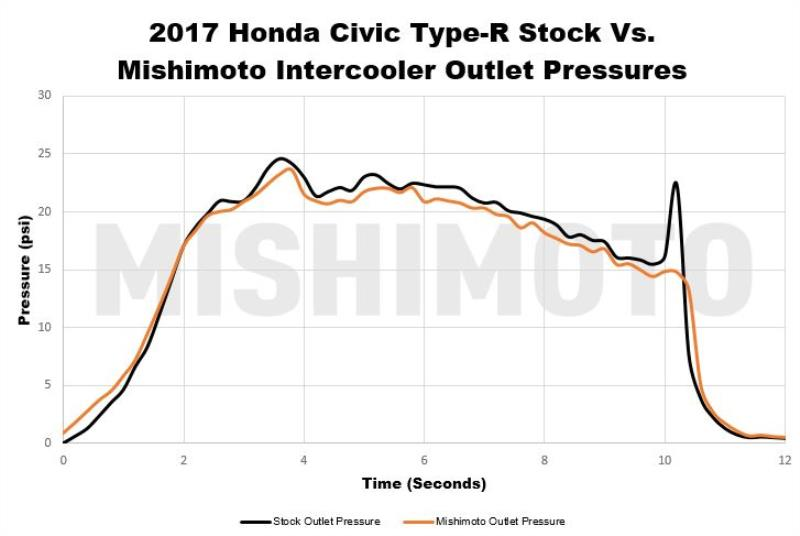

  • Optimal core design for maximum cooling efficiency with a minimal pressure drop

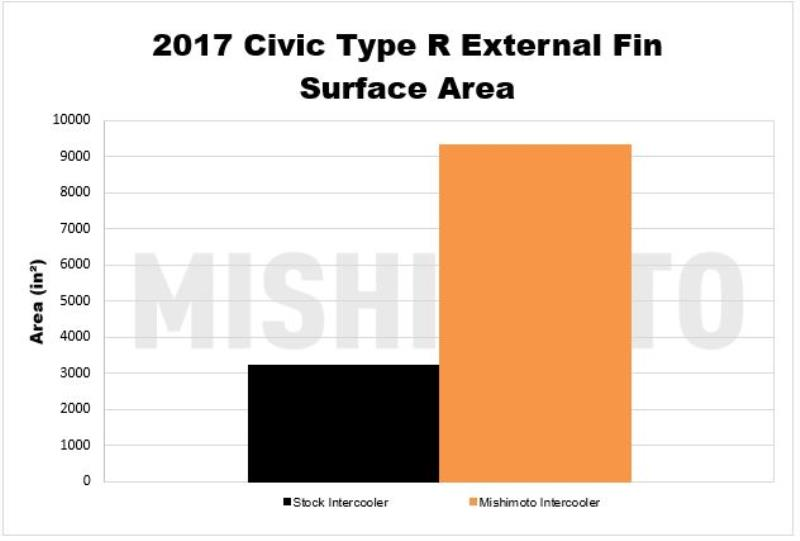

  • Intercooler volume increased by 169% and external fin surface area by 189%

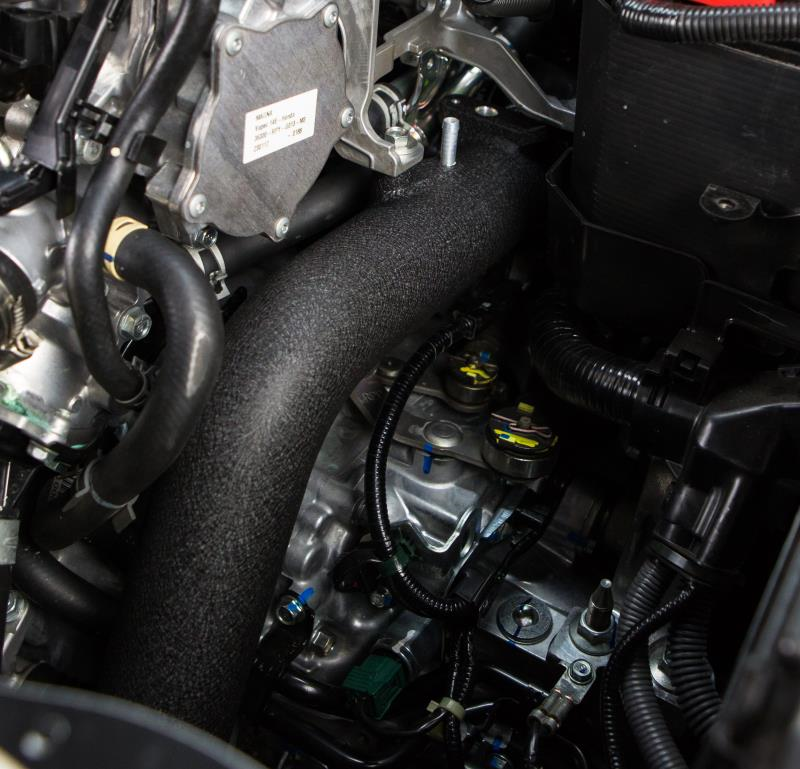

  • Mandrel-bent aluminium cold-side piping for increased durability

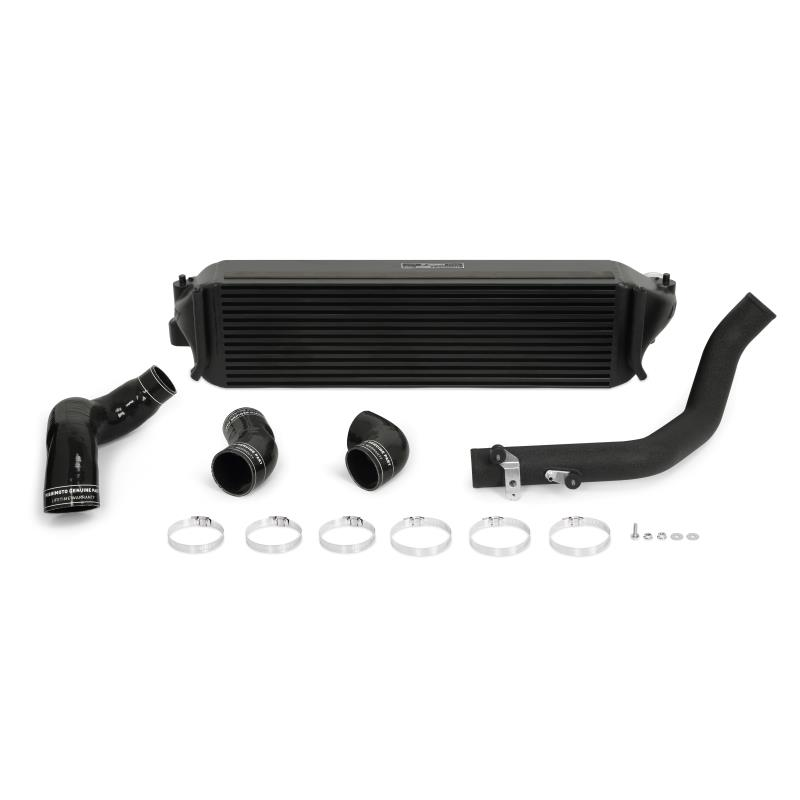

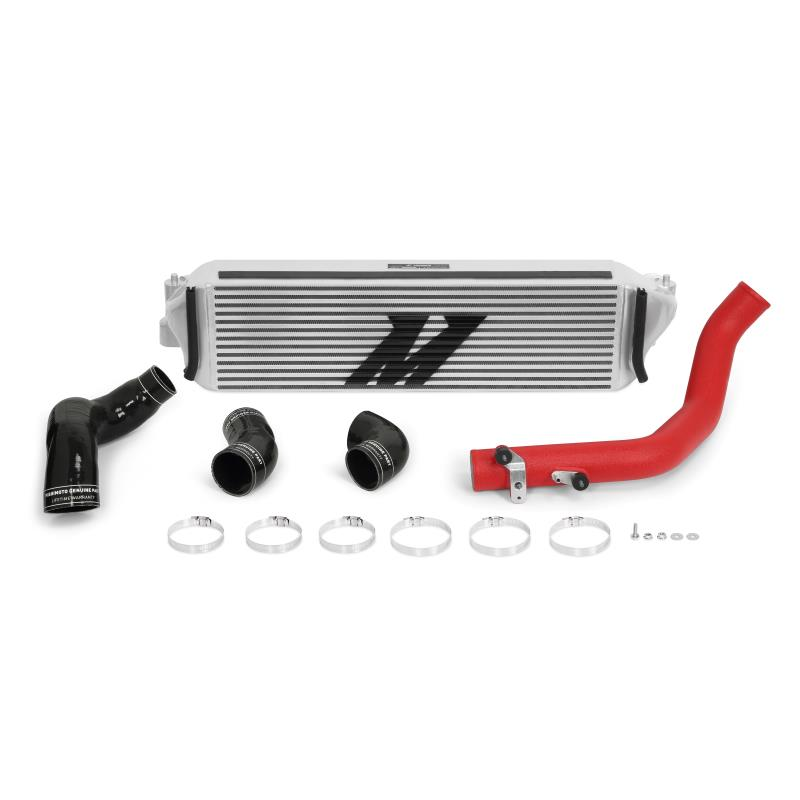

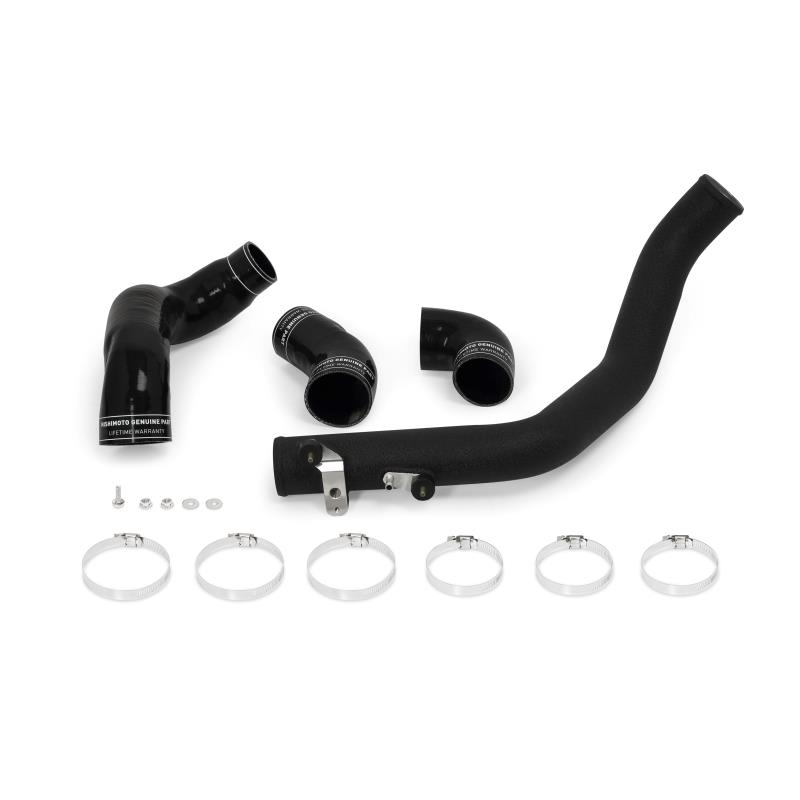

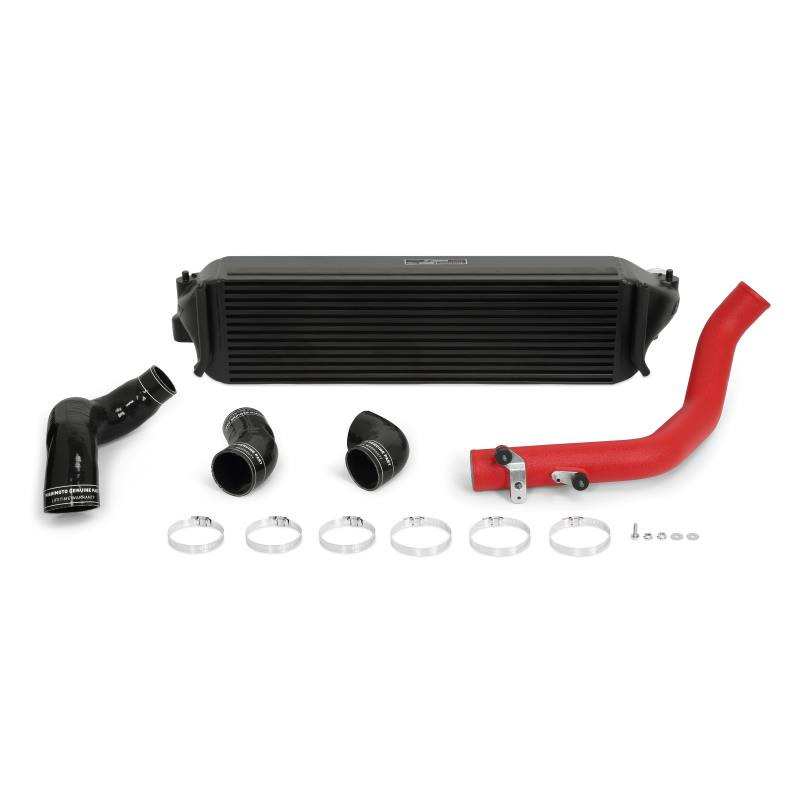

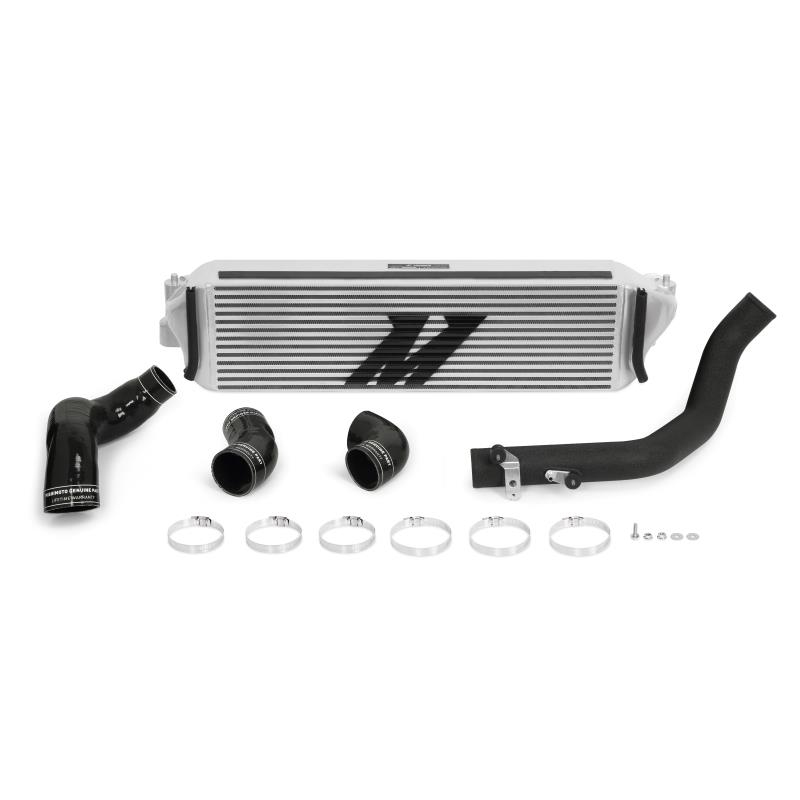

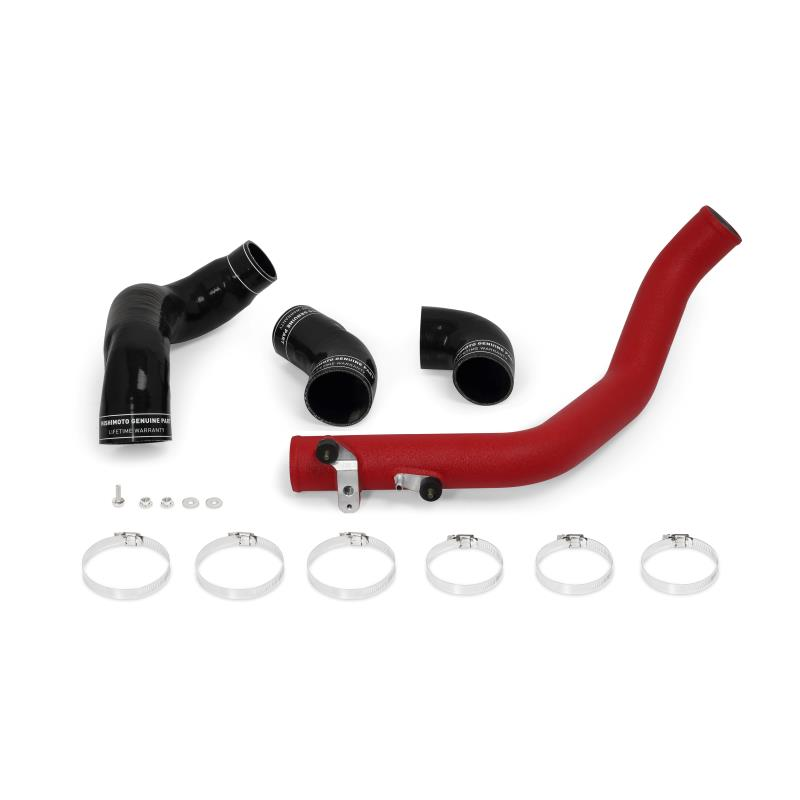

    WHAT'S IN THE BOX

    (1) Intercooler
    (1) Mandrel-Bent Aluminium Cold-Side Pipe

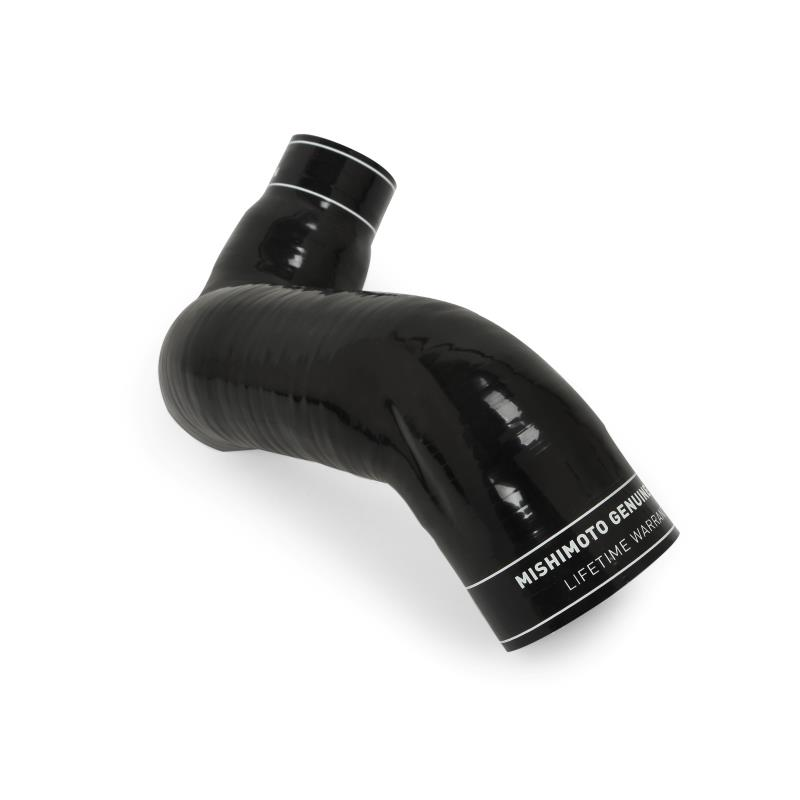

    (1) Silicone Hot-Side Pipe
    (2) Silicone Couplers
    (4) High-Torque Worm Gear Clamps
    (2) High-Torque T-Bolt Clamps
    Mounting Hardware

      COMPATIBLE VEHICLES

      • Honda Civic Type R | FK8 2.0T K20C1 | 2017+

      FITTING DETAILS

      Dream Automotive offers in-house fitting on all products at our workshop in Luton, Bedfordshire. Here are the important things you need to know:

      • Fitting Time -
      • Required Additional Items/Services - No additional items or services needed.
      • Dream Automotive Recommends - No additional recommendations.

      Installation Torque Specs - 27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4N*M). Do not exceed the maximum torque rating of 35 in-lbs (4N*M).
