Airtec | Stage 3 Intercooler | Toyota GR Yaris | G16E-GTS | 2024+

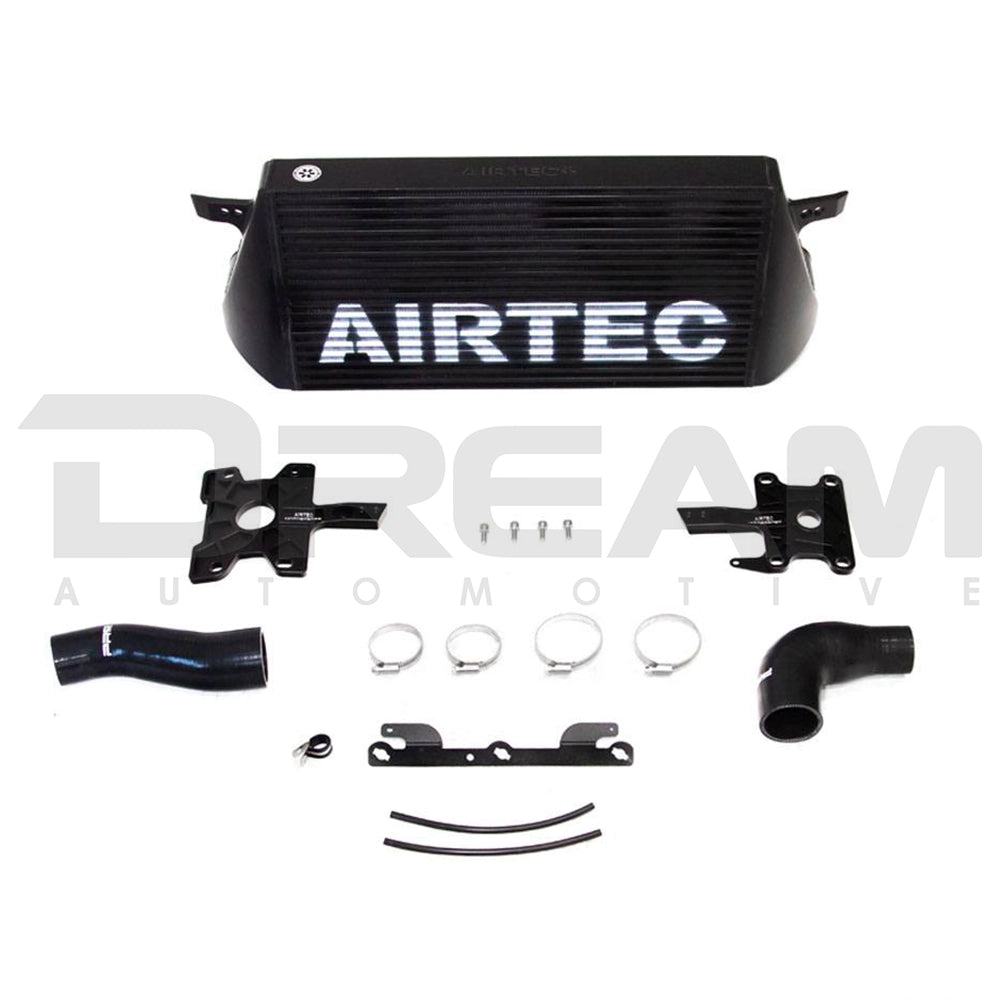

Airtec Motorsports ultimate specification intercooler kit with a stepped core and integrated crash bar design aimed at modified Toyota Corolla GR owners who want the very highest levels of cooling efficiency and performance for track or fast road use.

Offers a huge 143% increase in overall capacity in comparison to the original intercooler (and 56% bigger than our Stage 1 kit), and also features a colossal 125% increase in frontal area over standard (74% over our Stage 1).

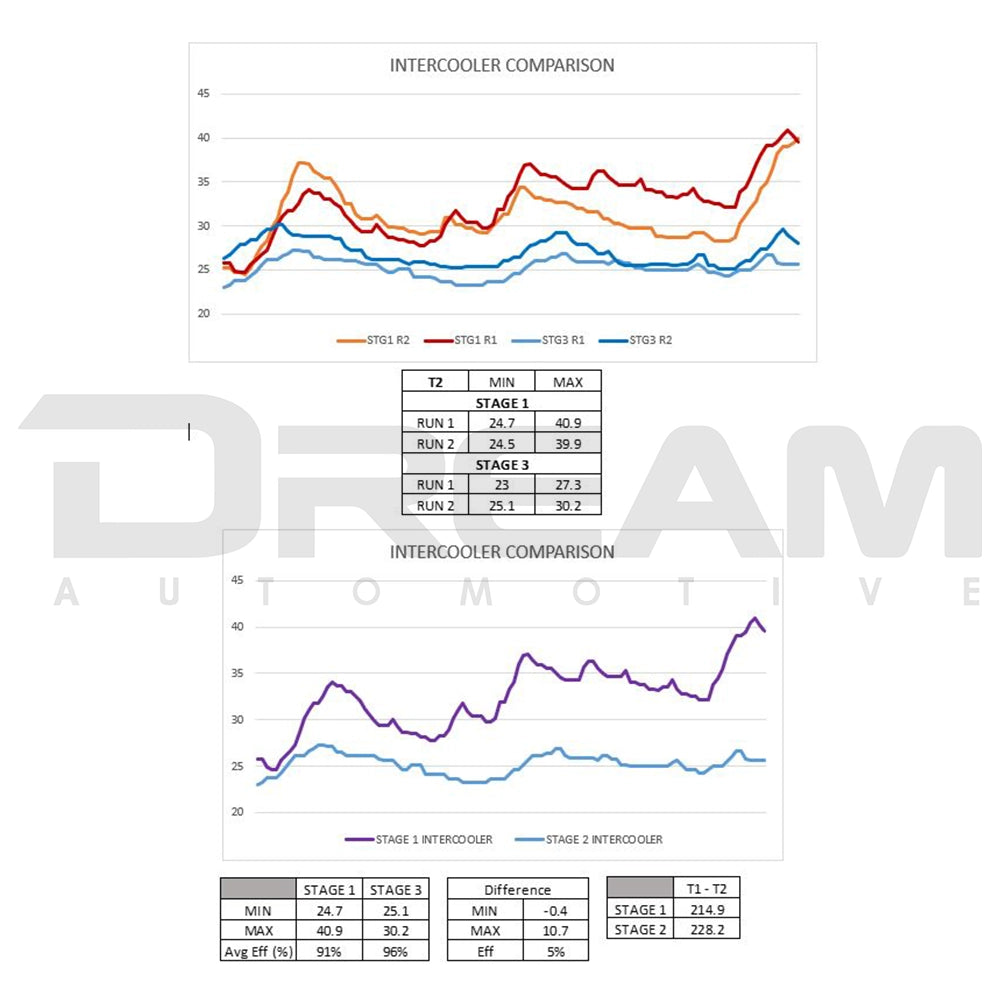

During track testing at Snetterton Circuit in the UK using our 420bhp AIRTEC Motorsport development car, we logged the inlet and outlet temperatures of both their Stage 1 and Stage 3 intercoolers back-to-back.

The figures showed that at this high level of power, over the course of a hot lap the Stage 1 starts to fight maintaining a stable charge temperature, with a 15-degree range highlighting its battle against the high and sustained levels of boost pressure. However, with the Stage 3 intercooler fitted, the figures showed the larger core with increased air flow provided a much more consistent charge temperature throughout the test, highlighted with just a 5-degree range in temperature.

Verdict: Both intercoolers demonstrate a high level of efficiency, reducing charge air temperature by over 200 degrees and equating to over 90% efficiency, but the Stage 3 could sustain that level for longer, which is crucial for highly tuned cars to run safely for extended periods of time.

Intercooler NOT fit with AIRTEC Motorsport  GR Yaris Oil Cooler

TECH SPECS

• Width: 610mm

• Height: 330mm

• Depth: 110mm to 70mm stepped core

• Capacity: 18.2 litres

• Frontal area: 20,130cm²
• 143% increase in overall capacity in comparison to original
• 125% increase in frontal area over standard

COMPATIBLE VEHICLES

• Toyota GR Yaris | G16E-GTS | 2024+ (Gen 2)

FITTING DETAILS

Dream Automotive offers in-house fitting on all products at our workshop in Luton, Bedfordshire.

AVAILABILITY

2-7 Days
