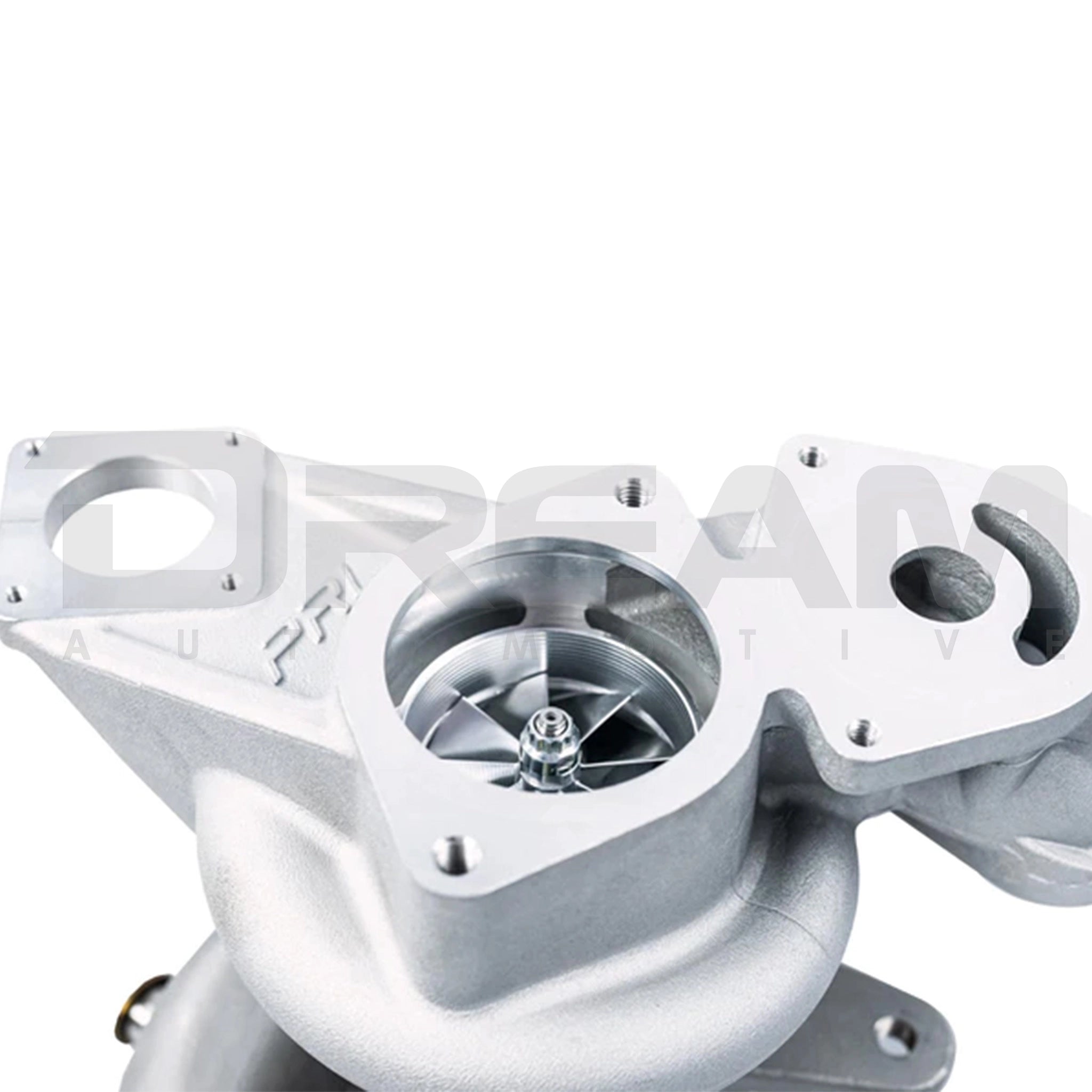

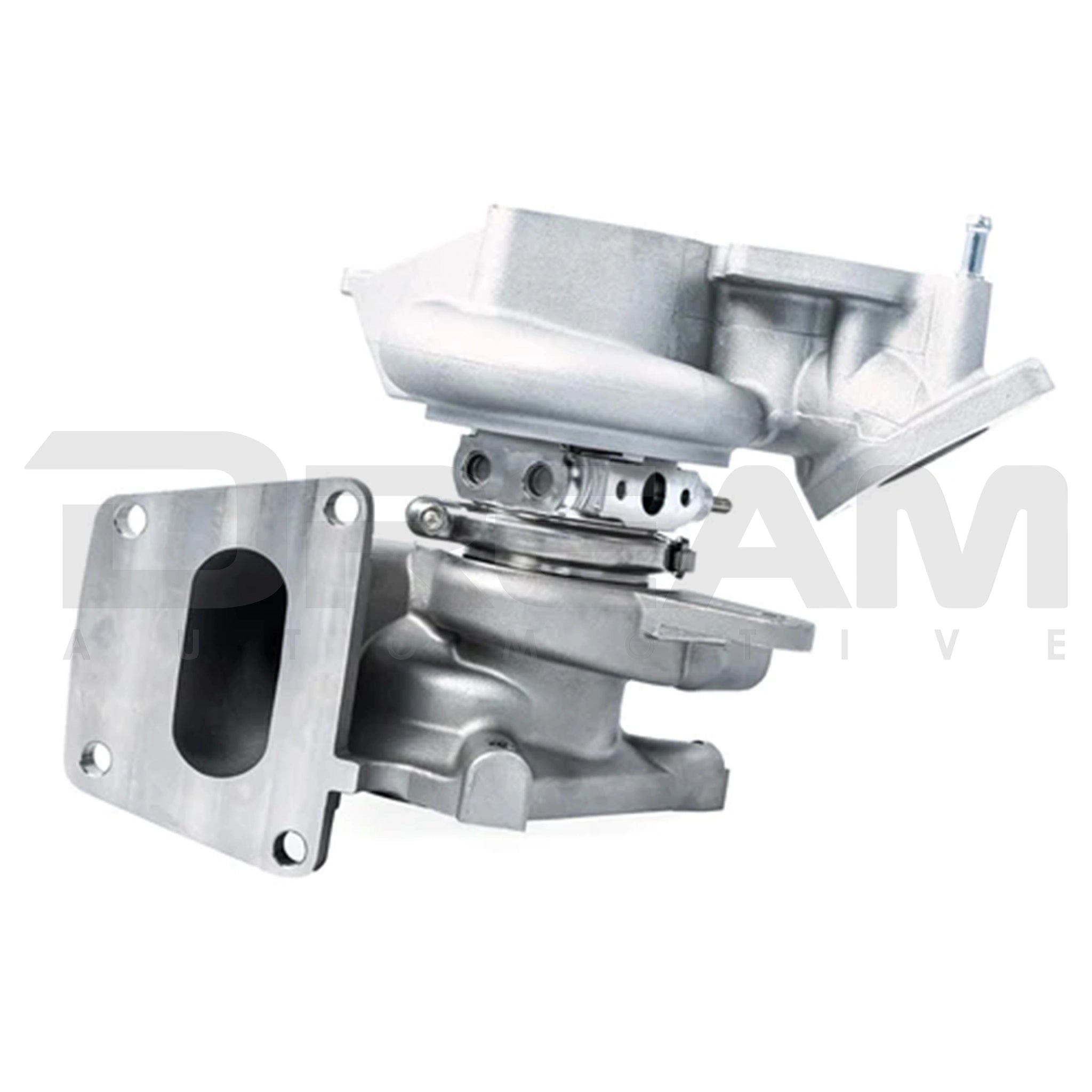

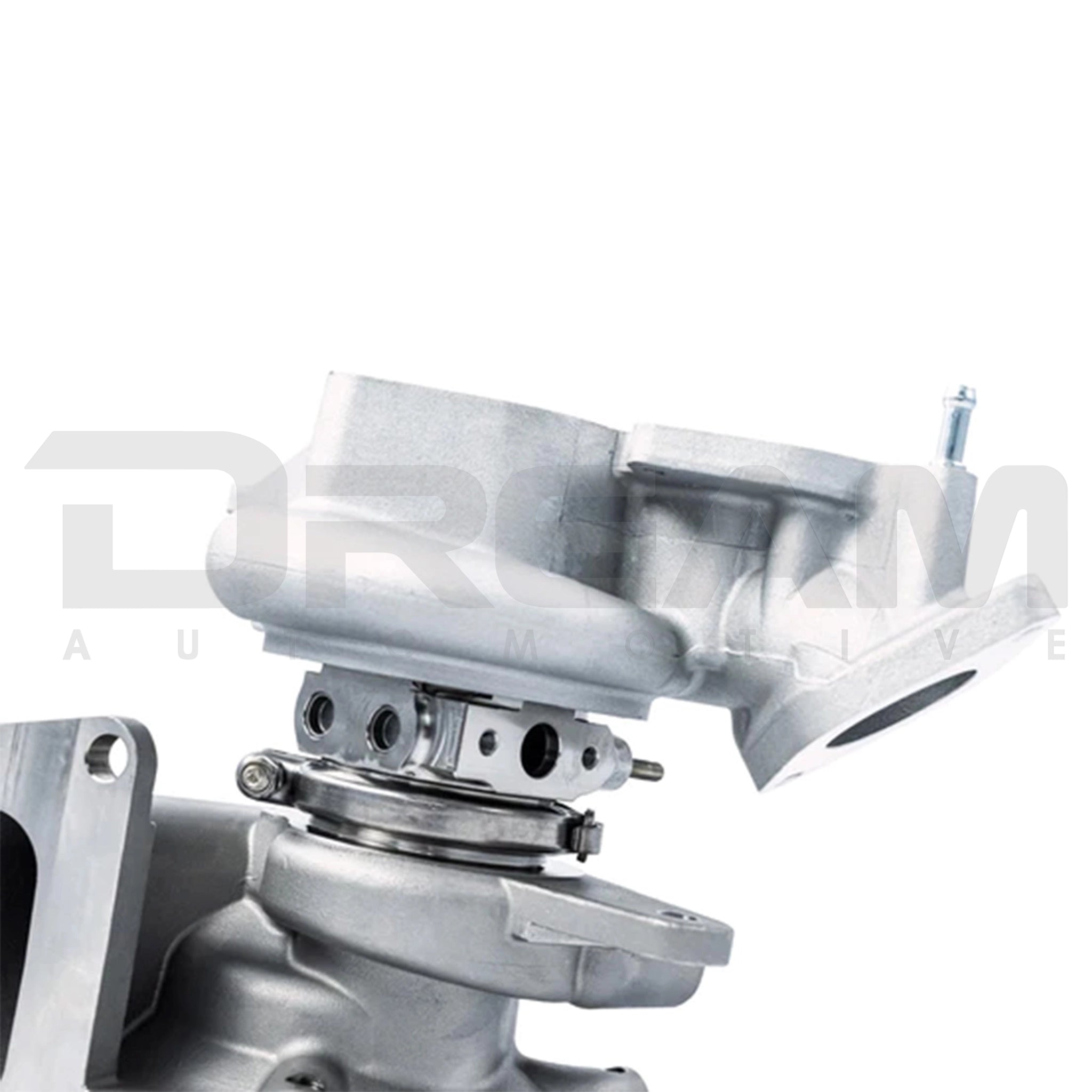

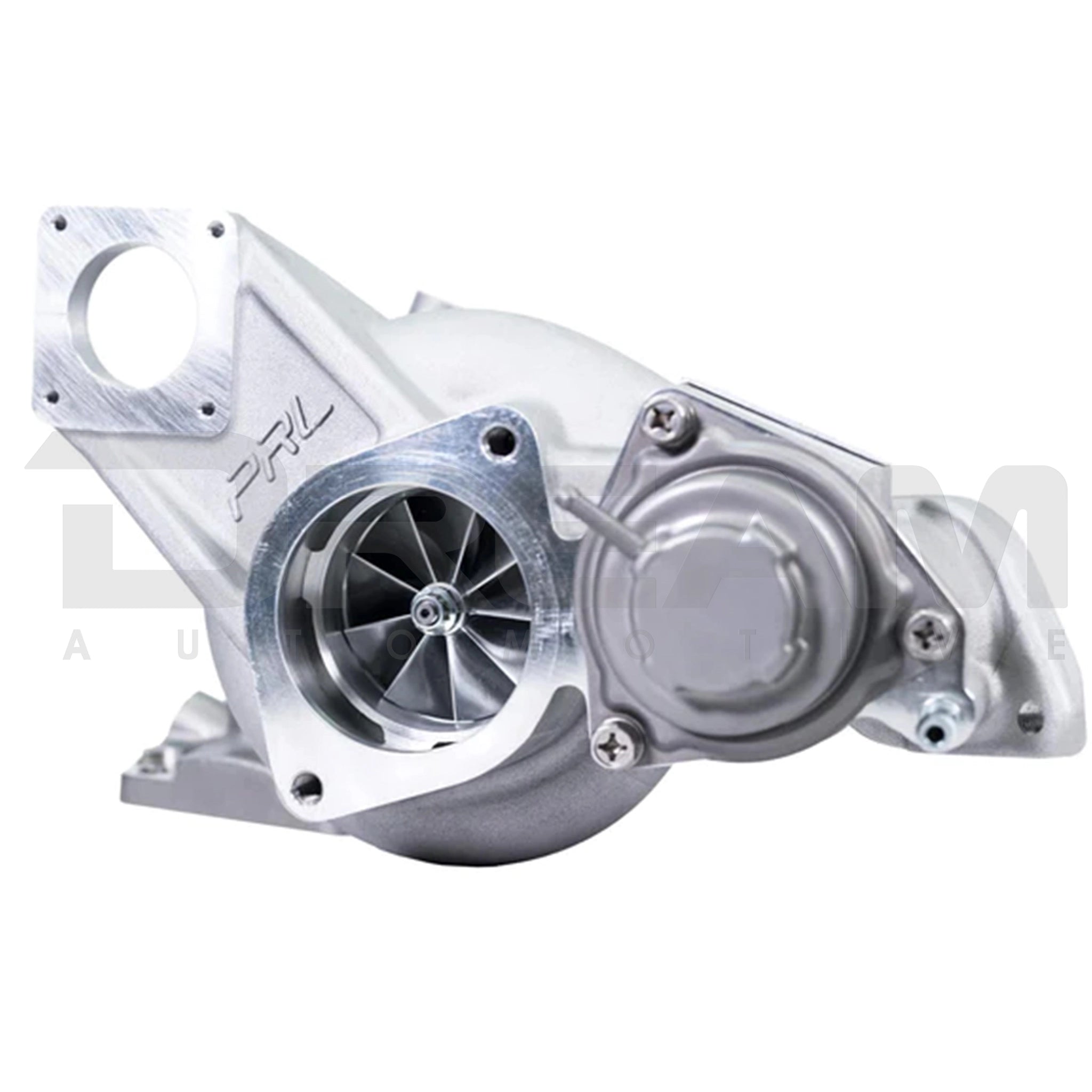

PRL P700 Drop-In Turbo Charger V2 | Honda Civic Type R | 2.0T K20C1 | 2015+

£2,649.95 GBP

Pickup available at Dream Automotive

Usually ready in 24 hours

The PRL Motorsports P700 Drop-In Turbocharger Upgrade for FK2/FK8/FL5 platforms offers 600+ horsepower capabilities for Honda's 2.0L Turbo K20C Engines without sacrificing spool. A billet 304 stainless steel, dual ceramic ball bearing CHRA was implemented for reduced weight and improved durability. Factory oil and coolant lines are retained, as well as the factory bypass valve and wastegate actuator. Increased cooling capacity has been provided by the CHRA's larger water jacket.

Our High Efficiency compressor wheel is significantly taller than most billet compressor wheel upgrades and features the latest technology in aerodynamics (tapered tip exducer, cutback design on blade top edge) for optimal spool and power. A larger compressor wheel diameter in comparison to our P600 turbocharger allows for drastically decreased shaft speeds. This High Efficiency Turbine Wheel also features the latest technology in aerodynamics for optimal spool and power. A larger wastegate actuator bore also lowers backpressure.

Please make sure (both) supplied copper crush washers are installed correctly (one on top and one on bottom of banjo fitting, sandwiched by banjo bolt. Factory banjo bolt torque spec is 35 nm or 25.86 ft/lbs.


TECH SPECS

  • Cast 304 Stainless Steel, Dual Ceramic Ball Bearing CHRA
  • Cast Aluminum, Stock Location Compressor Housing w/ Anti-Surge Inlet
  • Cast 304 Stainless Steel Turbine Housing w/ Integrated o2 Sensor Bung for Compatibility w/ Accord, RDX & TLX
  • High Efficiency Point-Milled 9-Blade Billet 7075 Aluminum Compressor Wheel (58mm Inducer, 71mm Exducer)
  • High Efficiency Inconel 713C 9-Blade Turbine Wheel (54mm Inducer, 49mm Exducer)
  • Increased Wastegate Diameter
  • Direct replacement for the standard turbo
  • Requires a remap

WHAT'S IN THE BOX

  • P700 Turbo Assembly
  • Premium mounting hardware kit (studs, nuts & bolts for the turbo to cylinder head, and turbo to downpipe connections)
  • Gasket kit (Turbine inlet, outlet, compressor inlet, oil feed, oil return, coolant lines)
  • Oil feed filter/O-ring assembly
  • Oil feed crush washers

COMPATIBLE VEHICLES

  • Honda Civic Type R 2.0T K20C1 FK2
  • Honda Civic Type R 2.0T K20C1 FK8
  • Honda Civic Type R 2.0T K20C1 FL5
  • Ariel Atom

FITTING DETAILS

Dream Automotive offers in-house fitting on all products at our workshop in Luton, Bedfordshire.

Contact us for more information.

AVAILABILITY

PLEASE CHECK FOR AVAILABILITY
