ACL RACE Conrod Bearing Set | Honda Civic Type R | FK2/FK8 2.0T K20C1 | 2015+

£68.00 GBP
Tax Included (UK only) Shipping calculated at checkout.

Pickup available at Dream Automotive

Usually ready in 24 hours

Size: Standard | STD
DESCRIPTION

Designed to withstand higher RPM conditions, ACL Race Series Engine Bearings are available for many of the popular 4, 6 & 8 cylinder applications and features:

  • HIGH STRENGTH OVERLAY PLATE with reduced thickness for improved fatigue properties
  • HARDENED STEEL BACKS on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
  • INCREASED CRUSH for improved bearing retention
  • ELIMINATION OF FLASH PLATING on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and their housing.
  • INCREASED ECCENTRICITY to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
  • 3/4 GROOVED MAIN BEARINGS to optimize bearing load carrying surface area and oil flow to the conrod bearings.
  • TIGHT CONSISTENT WALL TOLERANCES to help you maintain consistent clearances.
  • ENLARGED ID CHAMFERS on bearing edges where required to accommodate large fillet radius on performance crankshafts.
Sizes STD, .025, .25
Oil Clearance Standard
Half Type Identical Halves
Material Tri-metal Hardened steel backs
Min. Std Shaft Size 1.889in / 47.98mm
Max. Std Shaft Size 1.8898in / 48mm
Min. Std Tunnel Size 2.008in / 51.004mm
Max. Std Tunnel Size 2.0088in / 51.024mm
Max Wall at Crown 0.0591in / 1.5mm
Max Overall Length 0.6063in / 15.40mm
Weight 0.12
Notes 0

TECH SPEC

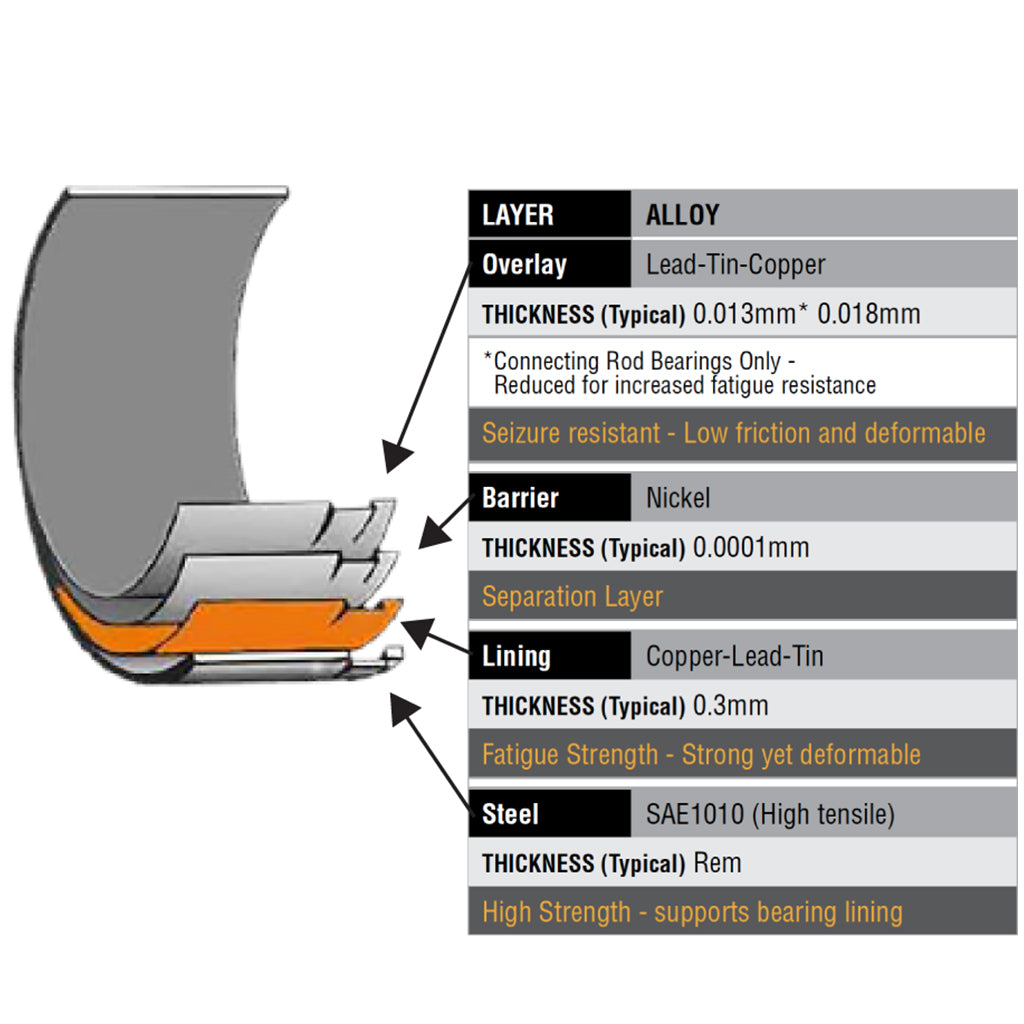

  • High-performance Trimetal engine bearings
  • Designed to withstand higher RPM conditions
  • High-strength overlay plate with reduced thickness for improved fatigue properties

    WHAT'S IN THE BOX

    • 1x FULL SET

    COMPATIBLE VEHICLES

    • Honda Civic Type R | FK2 2.0T K20C1 | 2015-2016
    • Honda Civic Type R | FK8 2.0T K20C1 | 2017+
    • Ariel Atom 4 | 2.0T K20C1 | 2019+

    FITTING DETAILS

    Dream Automotive offers in-house fitting on all products at our workshop in Luton.

    Contact us for more information

      AVAILABILITY

      STD - IN STOCK

      0.025 & 0.25 - 1-2 WEEKS
