Wunderladen Racing | Oil Heater Delete | Honda Civic Type R | FK8/FL5 2.0T K20C1 | 2017+

From the factory the K20C1 has an oil heater that flows both engine coolant and oil through it to get the oil up to temperature faster. The downside is once the engine is up to running temp, now the coolant is tasked with trying to remove heat from the oil. This puts extra thermal load on top of an already overtaxed cooling system and if you're tracking your Type R you are probably well aware of how much these cars struggle to keep coolant temps in check on track and quickly get put into limp mode once they get too hot!

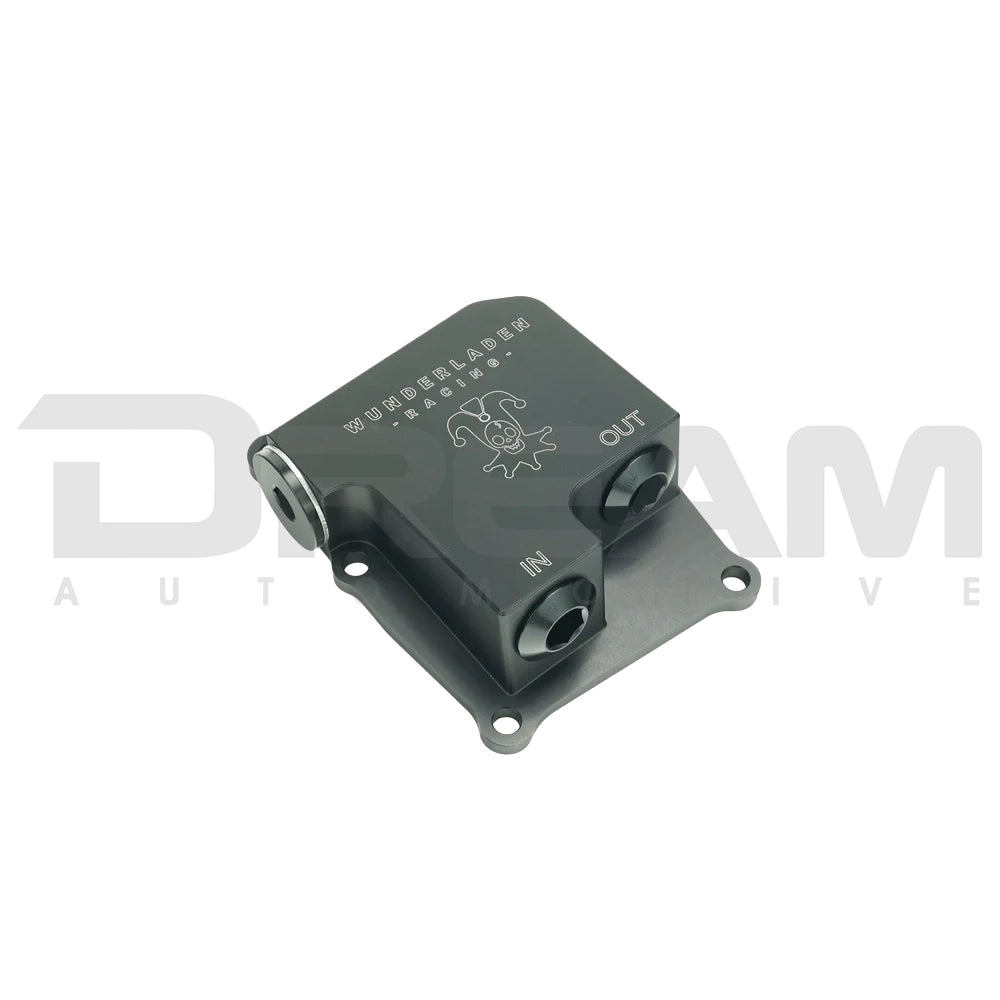

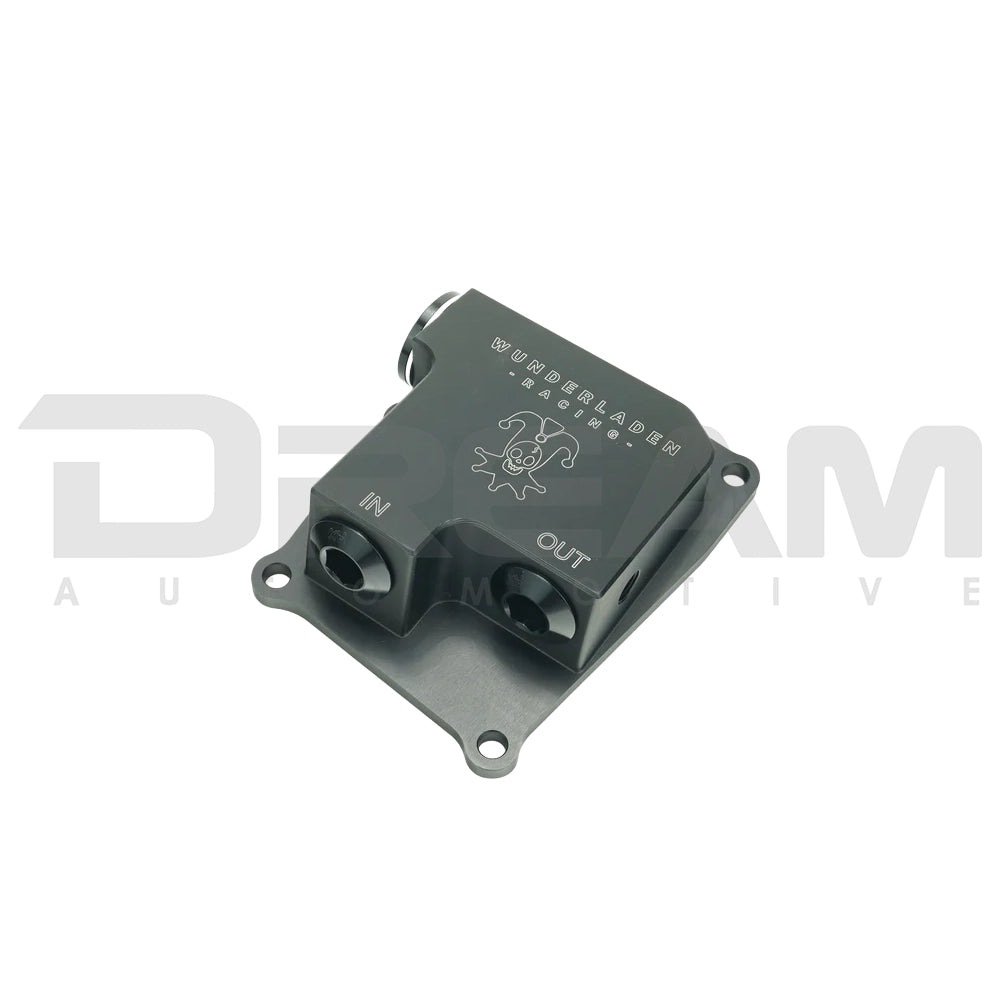

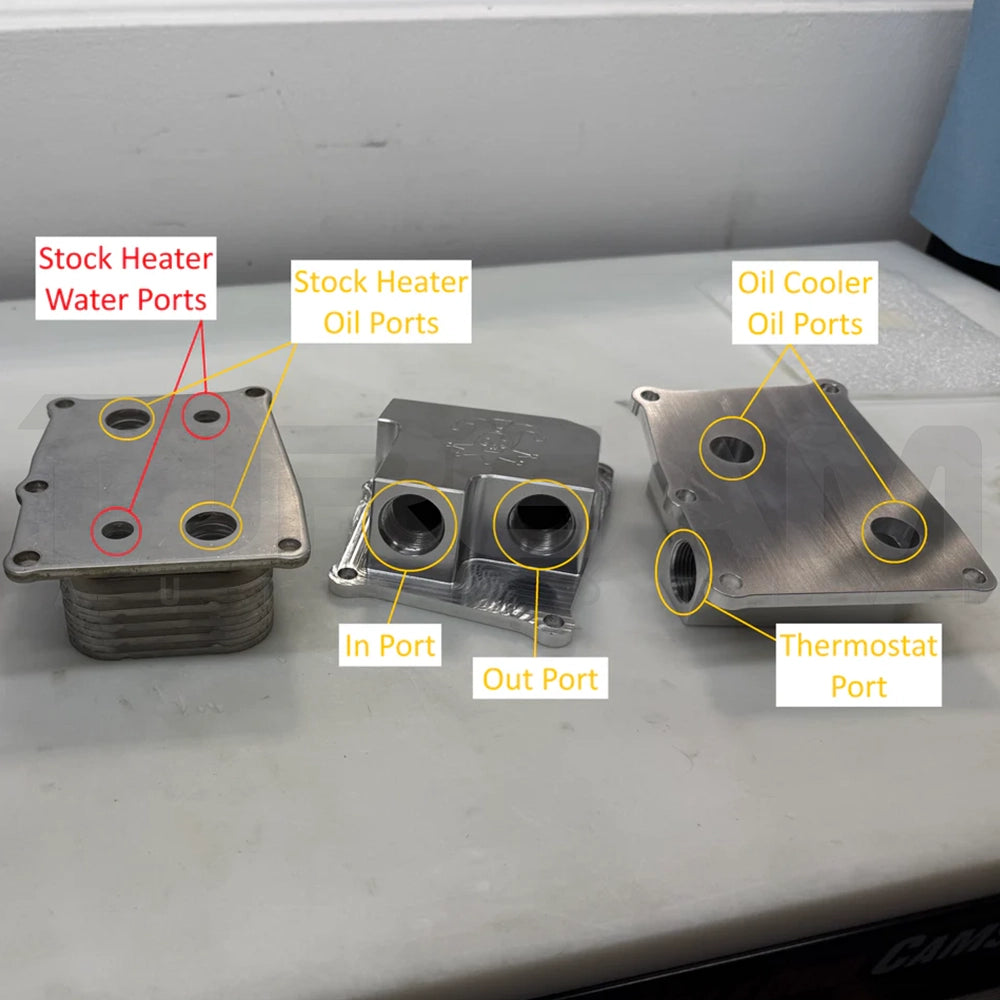

The Wunderladen Racing oil heater delete uses the the same oil cooler housing as their oil cooler kit, but comes with plugs for all of the ports. This allows for oil to flow through the housing but still eliminates the coolant circuit to remove thermal load from the cooling system. This kit is intended for those who already have an oil cooler kit but are still struggling with coolant temps. If you don't already have an oil cooler we recommend installing the Wunderladen Racing oil cooler kit or tri cooler combo.

Note: This does not come with a thermostat like our oil cooler kit because the inlet and outlet ports are plugged. Without an alternate route for the oil to flow through a heat exchanger all oil flow to the engine would be blocked if a thermostat is installed.

DO NOT INSTALL A THERMOSTAT IF OUR OIL COOLER HOUSING IS NOT PLUMBED TO A HEAT EXCHANGER

TECH SPECS

• Improves the OEM design

COMPATIBLE VEHICLES

• Honda Civic Type R | FK8 2.0T K20C1 | 2017-2022

• Honda Civic Type R | FL5 2.0T K20C1 | 2023+

FITTING DETAILS

Dream Automotive offers in-house fitting on all products at our workshop in Luton, Bedfordshire.

AVAILABILITY

1-2 Weeks
