HKS | Hipermax Touring Height Adjustable Kit | Honda Civic Type R | FL5 2.0T K20C1 | 2023+

The FL5 Civic Type R comes standard with an electronically controlled suspension, but its stock ride height is too high for for an aggressive stance. The HKS Hipermax Touring springs allows you to lower the ride height just enough to achieve a stylish appearance while retaining the stock electronically controlled suspension.

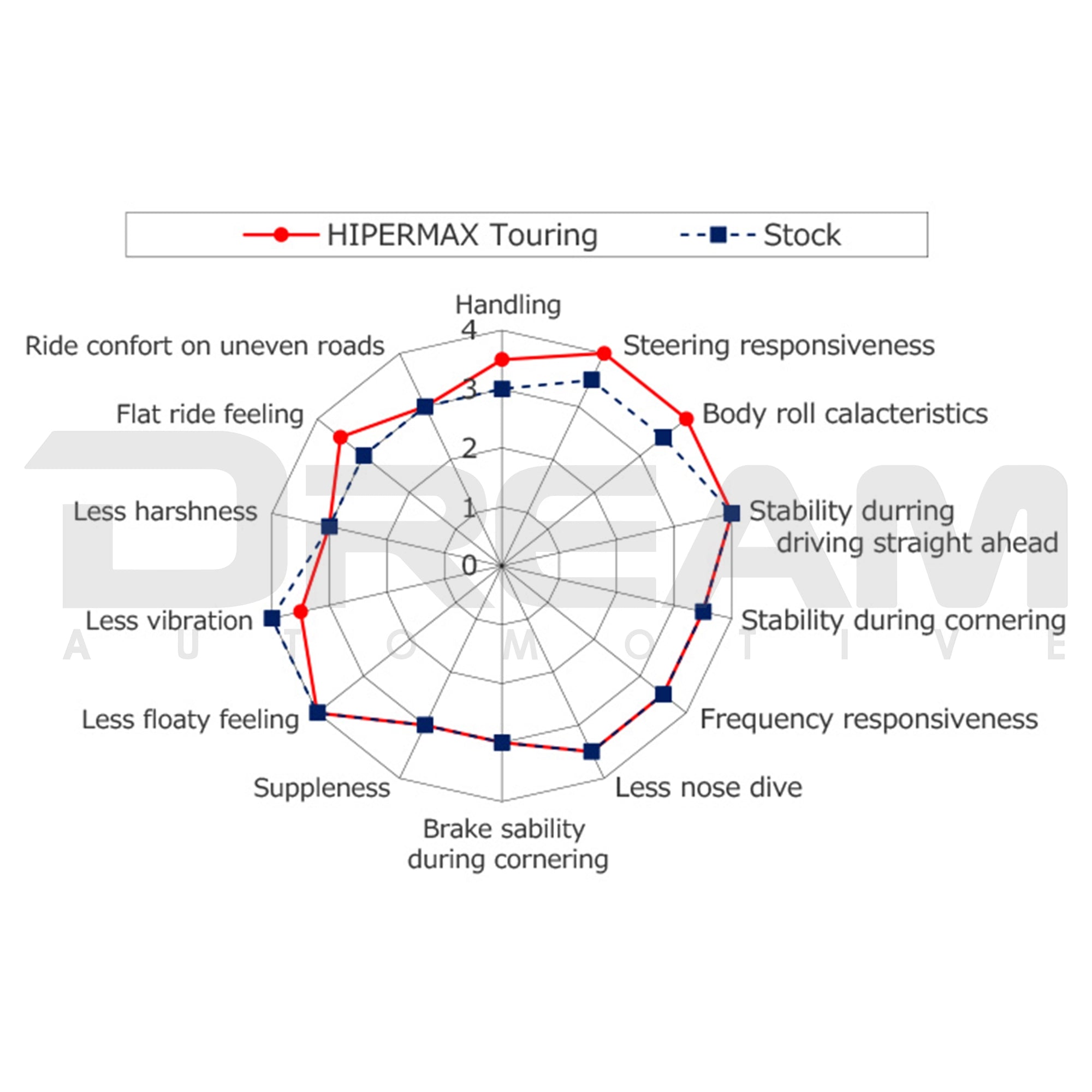

After repeated testing, HKS determined that by not drastically increasing the spring rate from the stock setting and intentionally making full use of the stock bump stops, HKS could maintain ride comfort while minimizing significant changes in vehicle posture.

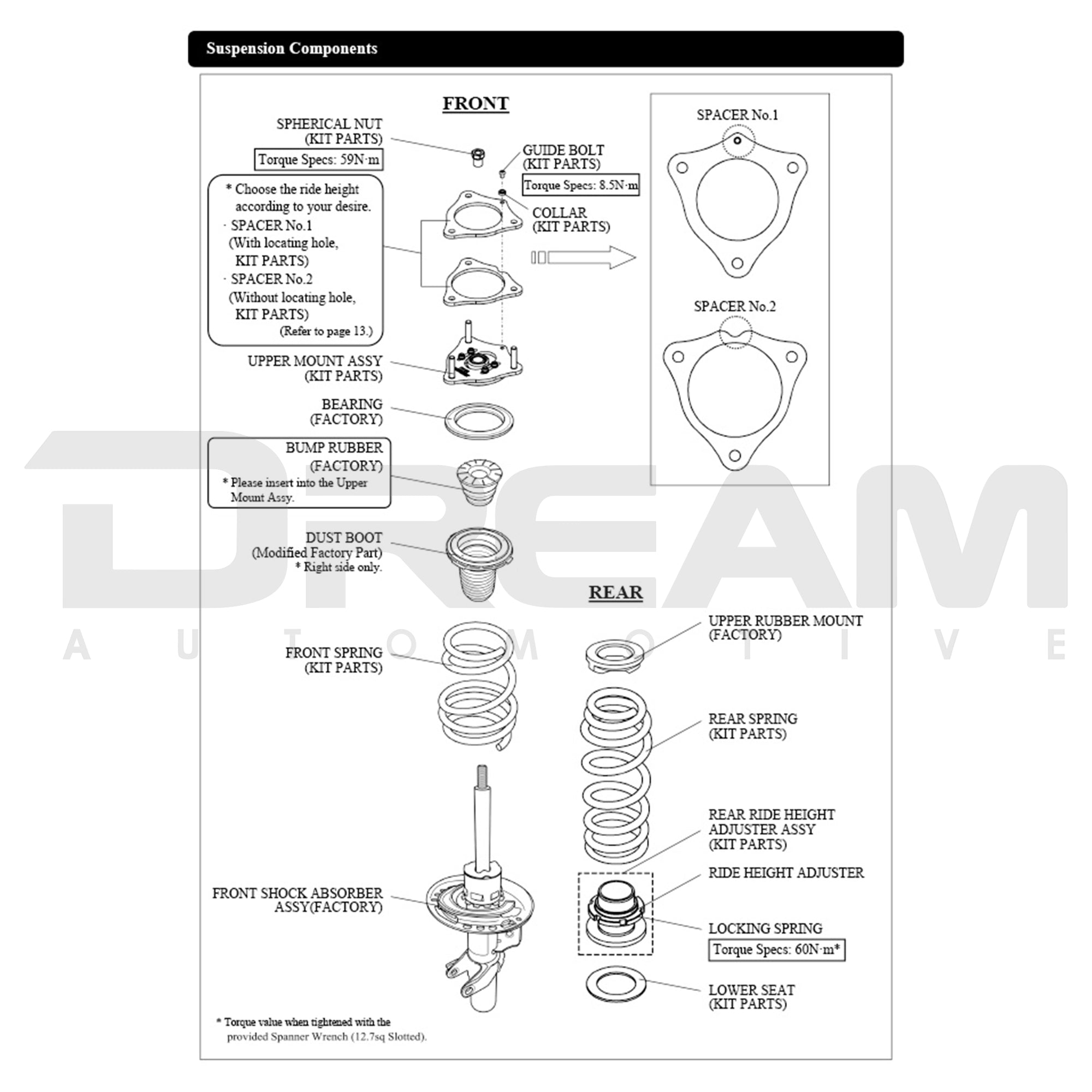

The front suspension features pillow-type upper mounts, delivering a sporty ride. Additionally, the camber adjustment function expands your options for tire and wheel sizes.

The front suspension offers three height settings, while the rear features screw-type height adjustment.

The front uses a ride height adjustment method that combines two spacers, rather than a standard height adjuster.

Ride Height During Testing: 19 mm Lower Than Stock
Place the body between the two spacers to install it.

When raising the ride height: 13 mm lower than stock
Install the two spacers between the body and the upper mount.

When lowered: 25 mm lower than stock
Attach only one spacer to the top of the body.

TECH SPECS

• Adjustable ride height and front camber adjustment
• Spring Rate, Front: 51 N/mm (5.2 kgf/mm)
• Spring Rate, Rear: 52 N/mm (5.3 kgf/mm)
• Spring Free Length, Front: Special
• Spring Free Length, Rear: Special
• Ride Height, Front: -19 mm
• Ride Height, Rear: -19 mm
• Upper Mount, Front: Spherical bearing
• Upper Mount, Rear: Stock
• Spring Rate Change at Factory, Front: Not available

COMPATIBLE VEHICLES

• Honda Civic Type R | FL5 2.0T K20C1 | 2023+


FITTING DETAILS

Dream Automotive offers in-house fitting on all products at our workshop in Luton, Bedfordshire

AVAILABILITY

Special Order
